50% Potassium Sulphate Production Plant with Mannheim Process

Product Description

Product Description This technology is one of most advanced production methods of potassium sulfate--- Mannheim Process method. The core is updated new reaction furnace based upon the basis of dry baking method to produce the potassium sulfate. Under the support of the special equipment, it has resolved the abrasion and the corrosion under the condition of high temperature and strong acid and the process problem of continuous output. Comparing with the similar equipments from foreign countries, its outstanding characteristics are less investment, short building duration (four to six months), high atomization, reliable quality, high heating efficient, high output, and environment protective. The design, fabrication, installation, production process, inspection and testing of this whole set of technique and equipment, are completed by ourselves. We have successfully exported the whole set of equipment and technical know-how to overseas firms in Philippines, Indonesia, India, Egypt, Saudi, brazil etc.
Reaction process are: reaction temperature is 510-560ºC, feed KCL and H2SO4 to reaction chamber properly, both will be mixed and reacted to generate K2SO4 and HCL gas. HCL gas be sucked by fan continuously and keep reaction chamber is little negative pressure, finished K2SO4 be moved to cooling propeller continuously to cooling and crushing, then goes into air-sealing propeller, be moved to drag conveyor, through crushing and screening, will be sent to storage silo.

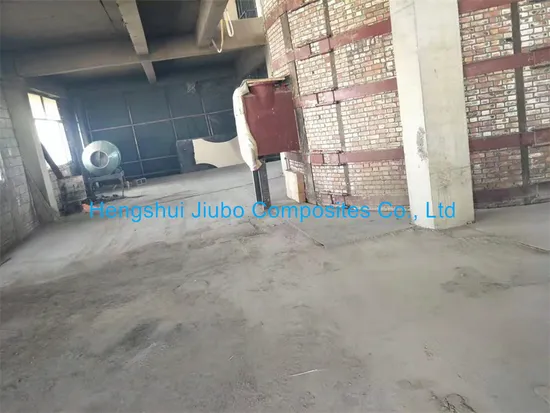

Detailed Photos
Product Parameters One furnace capacity is 10,000 t/y K2SO4 and 12,000 t/y hydrochloric acid (31% HCl)

Item	Powder			Granule
	Premium	1st class	Qualified	Premium	Qualified
Mass fraction of soluble potassium oxide (K2O) %, ≥	52	50	45	50	45
Mass fraction of sulfur (S) %, ≥	17.0	16.0	15.0	16.0	15.0
Mass fraction of chloride (CL¯)% , ≤	1.5	2.0	2.0	1.5	2.0
Mass fraction of water(H2O)%, ≤	1.0	1.5	2.0	1.5	2.5
Mass fraction of acid(calculated with H2SO4)% ≤	1.0	1.5	2.0	2.0	2.0
Mesh size, b(particle size 1.00mm-4.75mm or 3.35mm-5.60mm)%, ≥	_	_	_	90	90

Certifications
Company Profile
Hengshui Jiubo Composites Co., Ltd. is professional manufacturer of FRP Pipe, FRP storage tank, FRP cooling tower, FRP molded products, FRP pultruded products and relative FRP production machines & technology. Through the continuous development and introduction of professional technology, our company rely on advanced technology, exquisite craftsmanship, reliable quality and perfect service, passed ISO9001, ISO14001, OHSAS18001 certification, our annual sales of glass fiber reinforced plastic series products achieved 20,000 tons, products have been sold to all over the world, USA, Brazil, Japan, Germany, India, Malaysia, Iran, Egypt etc, and won the support and trust from new & old customers.
Main products:
FRP tank and chemical equipment
High, middle, low pressure FRP pipe
FRP small-scaled wastewater treatment tank
FRP cooling tower
FRP pultrusion, molded series products
FRP polymer electrolytic cells
S/F, F/F double-wall oil fuel storage tank
Whole set of computer control filament winding machine
Whole set of FRP pultrusion machine
Whole set of FRP molded hydraulic press
Whole set of FRP grating molded machine
Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.
FAQ Q: Can you choose correct raw material for our FRP product?
A: absolutely, pls provide medium & concentration, temperature, pressure etc technical parameters, PP/FRP, PVC/FRP, PVDF/FRP etc pipe/tank/tower also are in our supply scope.

---
