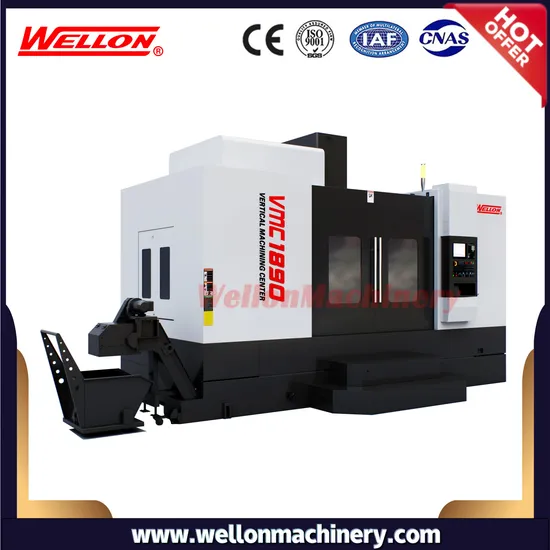

2000X900mm Heavy Duty Bt50 CNC Vertical Machining Center Vmc1890 CNC Milling Machine/Machine Tool/CNC Machine Center

Product Description

Product Description
Vertical Machining Center VMC1890 CNC Milling Machine/Machine Tool/CNC Machine Cente
Detailed Photos
Product Parameters

Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical Parameter:

Item	Unit	VMC1890
X axis travel	mm	1800
Y axis travel	mm	900
Z axis travel	mm	800
Spindle nose to worktable	mm	150-950
Spindle center to column	mm	965
Leadscrew diameter X,Y,Z	mm	Φ55
Linear guideway width X,Y,Z	mm	55/55/55
Worktable Length	mm	2000
Worktable width	mm	900
Max loading capacity	kg	2000
T-slots(NO./width/pitch)		7-22*120
Spindle taper		BT50
Spindle speed	rpm	6000
Main motor power	kw	15/18.5
Fast moving speed (X/Y/Z)	m/min	30/30/24
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	37/37/37
Feed motor power	kw	4.5/4.5/4.5
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	4300
Width	mm	3100
Height	mm	3500
Weight	kg	14000

Standard accessories:
Mitsubishi M80 control system
Taiwan Spindle: 6000rpm
X/Y/Z axes: Mitsubishi servo drive motor
Main motor: Mitsubishi spindle motor
24 tools Disc type magazine
Chain tupe chip conveyor*1+screw type chip conveyor*2
USB +Enthernet interface
Rough cutting of thread
Full closed cover
Safety door
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Air gun
Air conditioner in cabinet
Nitrogen balance cylinder
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Optional accessories:
Spindle oil cooling
Spindle center water spray
4th Axis or 5th Axis
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
