Product Details
Product Description
Product Description

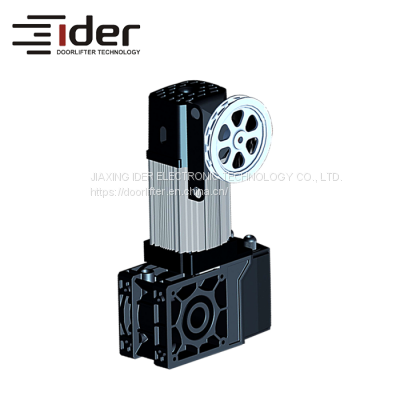

Large Industrial Door Operator: GYM260S-1,GYM260S-2,GYM350S-1,GYM350S-2,GYM500S-1,GYM500S-2
· Semi-automatic manual chain mechanism;
· The reduction gearbox adopts precision worm gear and worm drive and oil-immersed lubrication, smooth transmission, low noise, long service life;
· Lead to adopt high precision 14 absolute encoder(16000 pulse point) of electronic limit mechanism. A great of improve the precision of limit;
· Original motor built-in brakes, effectively reduce motor inertial, enhances the accuracy of the lim;
· Double limit protection, more safe and reliable;
· Safety brake systems inside reducer.
Model
| GYM260S-1
| GYM260S-2
| GYM350S-1
| GYM350S-2
| GYM500S-1
| GYM500S-2
|
Input Voltage
| AC380V
| AC380V
| AC380V
| AC380V
| AC380V
| AC380V
|
Rated Power
| 800W
| 800W
| 1000W
| 1000W
| 1000W
| 1000W
|
Rated Current
| 3.5A
| 3.5A
| 3.5A
| 3.5A
| 3.5A
| 3.5A
|
Startup Torque
| 260N.m
| 260N.m
| 350N.m
| 350N.m
| 500N.m
| 500N.m
|
No-load Running Time
| 25min
| 25min
| 25min
| 25min
| 25min
| 25min
|
Maximum Door Weight
| 50m2
| 50m2
| 70m2
| 70m2
| 100m2
| 100m2
|
No-load Rotating Speed
| 12r/min
| 12r/min
| 12r/min
| 12r/min
| 8r/min
| 8r/min
|
Diameters of the hole for output shaft
| Φ32/35/40mm
|
Retarding Mechanism
| Mechanism completely built with cooper worm wheels and worm rods
|
Lubrication
| Oil submerging
|
Thermal Protective Temperature
| 120ºC
|
Max. Limited Journey
| 20 rounds rotation of the output shaft
|
Ambient Temperature
| -20ºC~+45ºC
|
Working System
| S2 20%
|
Noise
| ≤60dB
|
Protective level
| IP 54
|
Mode of manual chain
| Universal chain style
|
Swift Release Upon Power Failure
| Pull-rope release(optional)
|
Type of limit switch
| Mechanical limit
| Electronic limit
| Mechanical limit
| Electronic limit
| Mechanical limit
| Electronic limit
|
Total weight
| 26kg
| 26kg
| 28kg
| 28kg
| 28kg
| 28kg
|
>>
