Product Details

Product Description

Product Description
Product No: XK200

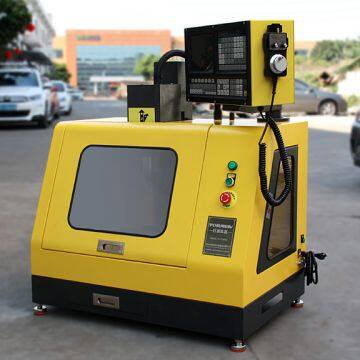

Product Name:Small CNC Milling
High performance 4 axis milling CNC controller.
Using ARM high performance CPU and ultra large scale programmable devices FPGA, real time multi task control and hardware interpolation technology, to realize the high efficiency of μm-level precision processing.
The standard spec includes MPG hand wheel.
Control speed of G code
Selection of high -quality casting materials,more compact.
Semi-automatic lubrication system,protect the rail life.
High quality 3 axis step motor,high torque brushless motor.
Pre-installed 4 axis fast interface.
Best choice for DIY or Hobby user and Education & Training CNC.
Technical parameters

X axis travel	220mm
Y axis travel	120mm
Z axis travel	200mm
Tool DIA. range	2-12mm
Control system	KY1000MC CNC Controller ,Optional Mach3
Instruction	DXF+G code template function, converting DXF automatically to G code for processing
MPG hand wheel	4 axis
Spindle motor	2.2kw
Spindle speed	24000r/min
The max moving speed	2000mm/min
The max feeding speed	1000mm/min
Positioning accuracy	0.03mm
Repeatability accuracy	0.02mm
Transmission	ball screw
guide rail	High-precision linear guide
Table size	460*130mm
T slot (amount*width)	38*12mm
Max. load	30kg
Table structure	Full cast iron
Power	220VAC / 110VAC
Weight(NW/GW)	165/200kg
Overall dimension	850*650*850mm
Packing size	930*750*1200m

---
