Smooth Inner Corrugated Outer Flexible PTFE Pharmaceutical Hose

Product Description

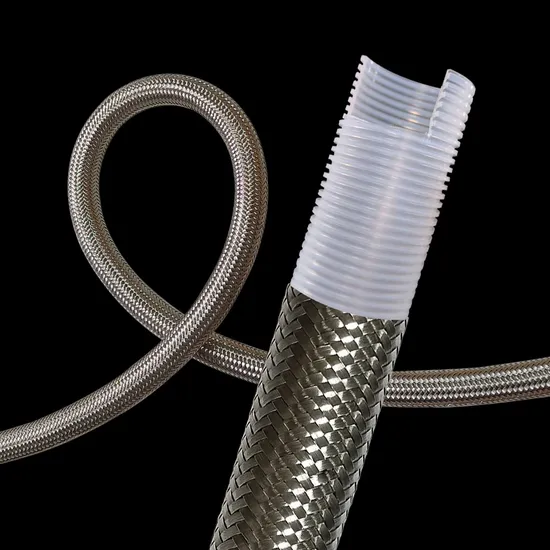

Product Description New PTFE pharmaceutical hose, Inner Smooth Outer Corrugated PTFE Hose Braided with 304 Stainless Steel
1. Inner smooth makes the hose less resistance and less residue liquid.
2. Outer corrugated makes the hose very flexible.
3. It combines the advantages of both smooth hose and corrugated hose.
4. Material: PTFE+304 stainless steel.
5. Working temperature: -70C ~ +260 Celsius degree
6. Advantages: less residue liquid, less resistance, flexible, non-stick, non-toxic, anti-corrosion.
7. Tt is widely used in chemical, food, pharmaceutical and medical industries.
Technical Date Technical Date of New PTFE Hose, PTFE Inner Smooth Outer Corrugated Hose Braided with 304 Stainless Steel

Inner Diameter (inches)	Working Pressure (bar)	Burst Pressure (bar)	Bend Radius (mm)
1/4''	140	420	32
5/16''	133	400	36
3/8''	127	380	45
1/2''	110	330	90
5/8''	73	250	92
3/4''	67	200	115
1''	50	150	120

Certifications
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food and medical grade tube. A professional manufacturer of PTFE hose, FEP hose and PFA hose

---
