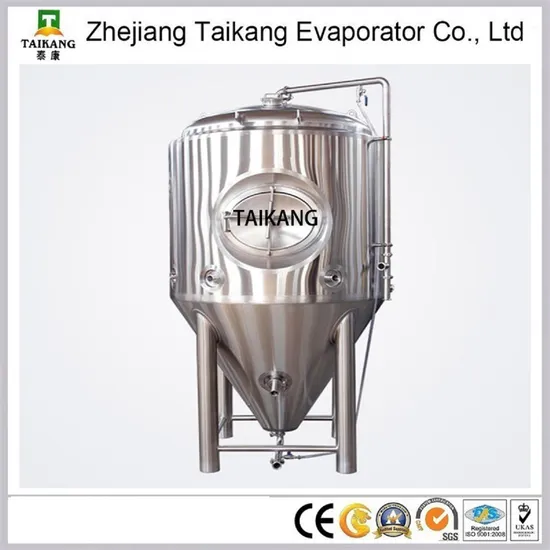

Leading Sale Stainless Steel Heating Mixing design Tank

Product Description

Product Name
Vertical mixer, Blending tank, Mixing vessel
Applicable range:
1. Used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Side blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
OEM is welcome too.

Capacity	Working Pressure(Mpa)	Working Temp. ( º C)	Mixing speed (R/M)	H (mm)	H1 (mm)	D (mm)	D1 (mm)	h ( mm)
100	0.25	100	0 - 720	1750	450	Φ 750	Φ 550	300
200	0.25	100	0 - 720	1950	600	Φ 850	Φ 650	300
600	0.25	100	0 - 720	2500	1000	Φ 1100	Φ 900	350
1000	0.25	100	0 - 720	2850	1200	Φ 1300	Φ 1100	350
2000	0.25	100	0 - 720	3350	1500	Φ 1500	Φ 1300	350
3000	0.25	100	0 - 720	3700	1700	Φ 1700	Φ 1500	350
5000	0.25	100	0 - 720	4250	2000	Φ 2000	Φ 1800	400
10000	0.25	100	0 - 720	5000	2500	Φ 2500	Φ 2300	400

---
