Biomass Fuel Pellet Machine Production Line Complete Equipment Wood Pellet Machine Manufacturers Ring Mold Pellet Machine

Product Description

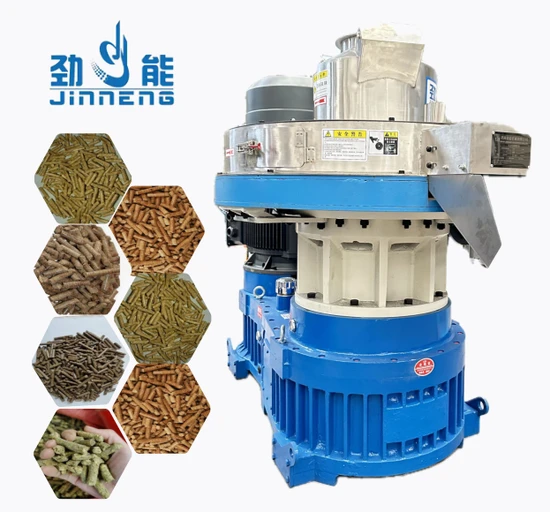

Description: JINNENG Wood Biomass Pellet Machine
Introducing the JINNENG Wood Biomass Pellet Machine, a cutting-edge biomass fuel production machinery developed by Jinan Jinneng Machinery Co., LTD. This innovative machine revolutionizes the industry by utilizing crushed sawdust to produce high-quality biomass pellets.
The JINNENG Wood Biomass Pellet Machine combines the best features of both horizontal ring die and flat-die Pellet Mill Machines, effectively addressing the limitations of traditional models. With its advanced technology and superior design, this machine offers unmatched efficiency and performance.
Key Features:
Crushed Sawdust Utilization: The JINNENG Wood Biomass Pellet Machine efficiently utilizes crushed sawdust, ensuring maximum utilization of raw materials and minimizing waste.
Innovative Design: This machine incorporates the best features of horizontal ring die and flat-die Pellet Mill Machines, resulting in improved pellet quality and production capacity.
Enhanced Efficiency: The JINNENG Wood Biomass Pellet Machine is designed to optimize the production process, reducing energy consumption and increasing overall efficiency.
High-Quality Output: With its advanced technology, this machine produces biomass pellets of superior quality, meeting the highest industry standards.
Durable Construction: Built to last, the JINNENG Wood Biomass Pellet Machine is made from high-quality materials, ensuring long-lasting performance and reliability.
Experience the future of biomass fuel production with the JINNENG Wood Biomass Pellet Machine. Trust in Jinan Jinneng Machinery Co., LTD, a leading name in the industry, to deliver cutting-edge solutions for your biomass fuel needs.
Main Features:
Stainless steel double layer ring die for a lifetime of use and low running costs.
Roller shell with the latest anti-wear alloy welding technology, increasing the lifetime by 1/3.
Automatically lubricated roller system allows for continuous 24-hour operation.
Industry-grade gearbox with a big modulus hard surface spiral gear for high efficiency and a guaranteed lifetime of THREE years.
Stainless steel pelletizing chamber cover made of 304 type stainless steel for enhanced durability.
Main shaft and bearing chamber undergo quenching and tempering treatment for superior quality.
Efficient gearbox oil circulation lubricates the main shaft bearing, reducing grease consumption.
Manufactured by Jinan Jinneng Machinery Co., LTD.
MAINLY PARAMETERS:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN560	90+1.5+0.37+1.5	1000-1200	4200	2300x1250x1950
JN560P	110+1.5+0.37+1.5	1200-1500	4500	2300x1250x1950
JN560X	132+1.5+0.37+1.5	1500-2000	5000	2300x1250x1950
JN700	160+1.5+0.37+1.5	1500-2000	6200	2800x1400x2100
JN850	220+3+0.37(0.55)+2.2	2000-3000	14500	3200x1630x2300

ONE feed port
From here pour in the granulated ingredients to be made
TWO Pellet machine outlet
Baffles are arranged on both sides to prevent particles from spreading to both sides
three pure copper motor
All copper wire winding high horsepower high efficiency accessories complete test machine delivery
four integrated design
Integrated design of motor reducer reduces transmission power consumption and improves efficiency

---
