Hot Cut Sjz80/156 Conical Twin Screw Extruder UPVC PVC Granulating Pelletizing Pellet PVC Granules Making Machine

Product Description

Product Description

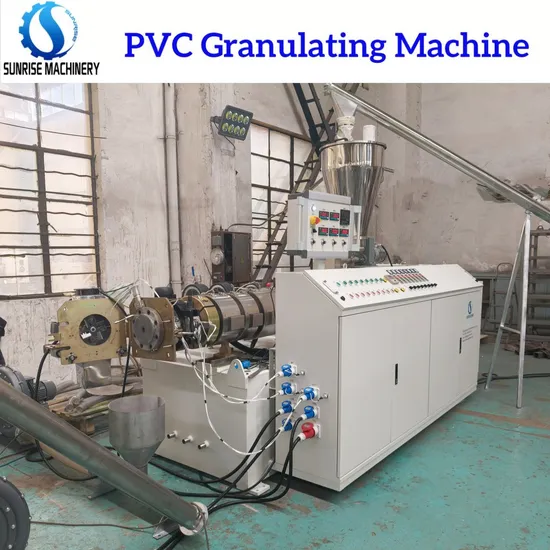

PVC granulating machine could produce PVC granules / pellets from mixed PVC resin or recycled PVC flakes. The produced PVC granules / pellets could be used as raw material for single screw extruder production, such as small PVC profile and PVC soft hose, single wall corrugated pipes production.
The PVC granulating machine includes screw feeder, conical twin screw extruder, die head, pelletizer, blowers and silos.
The PVC granulating machine adopts die face hot cutting, and air cooling. There are 2 or 3 group blowers and silos for the air cooling.
Models of PVC granulating Machine

Item	Conical Twin Screw Extruder Model	Main Motor (KW)	Output (KG/H)
1	SJZ51/105	18.5	100-120kg
2	SJZ65/132	37	220-260kg
3	SJZ80/156	55	350-450kg
4	SJZ92/188	110	500-650kg

Detailed Photos
Conical Twin Screw Extruder Model SJZ80/156

Screw/Barrel	Material: 38CrMoAlA, nitriding process and chrome plate, Nitriding Depth: 0.5~0.7mm,Surface hardness: 800~900HV
Screw Diameter	Φ80/156mm
Screw Effective Working Length	1760mm
Screw Rotating Speed	1~35rpm
Motor Power	55KW Siemens Beide Motor
Main Motor Speed Adjust	55KW ABB Inverter
Force Feeding Motor	0.75KW
Force Feeding Motor Inverter	0.75KW ABB Inverter
Barrel Heating	Stainless steel shell, cast-aluminum heater, with fan cooling.
Barrel Heating Power	36KW
Production Capacity	300~450kg/h
Main Electrics	Omron temperature control meter, Siemens contactor. Others are from Chinese famous brand.
Gear Box	The gear adopts 20CroTi, nitriding and grinding teeth process.The main bearing is from NSK imported.

Die Head
Made of steel alloy
Hole diameter 3mm

Pelletizer
Cutting blade 2pc
Die Face hot cutting
Cutting Speed by ABB inverter
Air Cooling Silos
3 group blowers
3 group silos
The pipe and silos are made of stainless steel SUS304.
Speed Control Inverter ABB
for control feeding speed, extruder speed and pelletizing speed

Omron Temperature control device
Siemens Contactor
More Pictures for your reference
Gear Box
Welcome to contact us for more details if you are looking for high quality PVC granulating machine.

---
