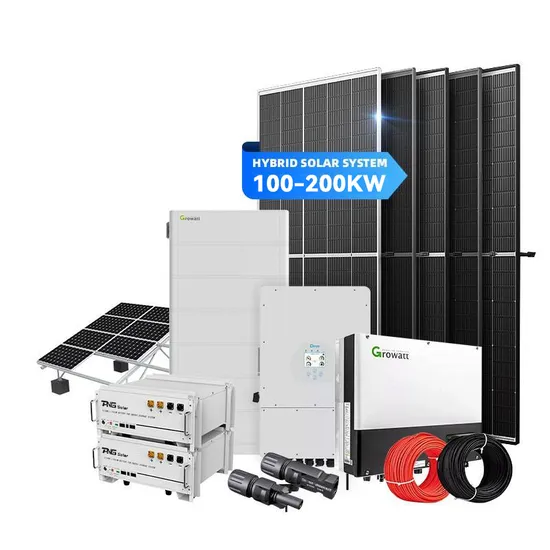

High Voltage 100kw 150kw 200kw Hybrid on off Grid Solar System for Commercial Use

Product Description

Company Profile
Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar moduls. PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. Jinko, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by SGS Group several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
3 production lines with annual capacity 1.2GW facilitate the lead produciton time .Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county. For residential and commercial solar energy system, PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul. Our principles: Integrity, Win-Win, Innvation !
Product Parameters
BOM for 100/150/200KW Hybrid Solar Energy System With Lithium Battery Pack

Model	100KW Hybrid Solar System	150KW Hybrid Solar System	200KW Hybrid Solar System
Solar Panel	N type Topcon, 580W*172pcs	N type Topcon, 580W*258pcs	N type Topcon, 580W*345pcs
Hybrid inverter	50KW*2pcs, with 4 MPPT built-in	50KW*2pcs, with 4 MPPT built-in	50KW*2pcs, with 4 MPPT built-in
Lithium battery	51.2V 102AH*4pcs	51.2V 102AH*6pcs	51.2V 102AH*8pcs
Grid-connected cabinet	SPD, breakers, switchers and etc
DC cables	PV1-F1*4mm2, red and black
AC cables	International standard
Solar Mounting Bracket	Hot-dip galvanized carbon steel or aluminum alloy , for metal/concrete/tiled rooftop
Accessories	Jinko original MC4 connectors, tools and etc

Note: 1. All components from famous brand , high quality , and are warrantied. 2. Reliable after-sale sevice during warranty period,replace or repair all parts. 3. Product dimensions and physical appearance in this data sheet are nominal. 4. Pinergy Solar reserves the right to make the product changes from time to time. 5. Installation and training service .
Photovoltaic Module* N Type topcon, 580w/585w, Jinko/JA/Astronergy and etc.
* 100% A grade from original factory.
* IEC61215/IEC61730/ISO9001/ISO14001/ISO45001
/MCS/FIDE/ RETIE certifications and etc.
* PID-Free, Anti-salt mist corrosion and Anti-Amonia .
* 12 years materials and processing warranty, 25years 80% power output warranty. Hybrid Inverter- Higher yields / Safe & Reliable / Smart / User-friendly* Colorful touch LCD, IP65 protection .
* AC couple to retrofit existing solar system.
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current 140A
* 6 time periods for battery charging/ discharging.
* Be equipped with RS485/CAN port for battery communication. Lithium Battery
* 48V /51.2V 100/102/120AH, 0.5C, high-voltage rack-mounted, high staibility and uniformity
* A grade cells from Gotion high-tech 3.2V 100AH/102AH/104AH or EVE 3.2V 102AH, Top brand manufacturer
* 80% after 6000 cycle times
* Compatible with Deye/ATESS/SMA and other famous inverter supplier
* 5years warranty Grid connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box
* Lightening protection, short-circuit protection, over-current protection
* Earth-leakage protection and anti-islanding protection
* Customized based on actual needs
* 5years warranty Solar Mounting System
* Pitched tiled/ flat roof mounting/ ground /carport mounted structure
* Mid-clmaping and end-clamping and all accessories
* Hot-dip galvanized carbon steel or aluminum alloy
* Compatible with all sizes of solar modules
* 10years warrantySolar Cable (DC & AC )* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black
* Tinned copper wire
* AC 0.6/1.0KV DC 1.0KV
* 100m per roll or 200m per roll
* 3years warranty.
1. Specifications of solar panels-Jinko 580W N type Topcon

Module Type	JKM580N-72HL4 JKM580N-72HL4-V
Test Condition	STC	NOCT
Max. Power. Pmax(W)	580	436
Open Circuit Voltage Voc (Voc/V)	42.37	39.69
Short Circuit Current (Isc/A)	13.69	10.99
Voltage at Max. Power (Vmp/V)	51.02	48.46
Current at Max. Power (Imp/A)	14.47	11.68
Module Efficiency	22.45%

STC: Standard Test Condition (STC):Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5Nominal Module Operating Temperature (NOCT):Irradiance 800W/m², Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s.
2. Specifications of Deye High-Voltage Hybrid Inverter

Technical Datasheet
Model	SUN-35K-SG01HP3-EU-AM2	SUN-40K-SG01HP3-EU-AM2	SUN-50K-SG01HP3-EU-BM4
Battery Input Data
Battery Type	Lead-acid or Lithium-iron
Battery Voltage Range (V)	160~800
Max.Charging Current (A)	50+50
Max.Discharging Current (A)	50+50
Number of Battery Input	2
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV Strings Input Data
Max.DC Input Power (W)	45500	52000	65000
Max. DC Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Range (V)	150-850
PV Input Current (A)	36+36+36+36
Max. PV ISC (A)	55+55+55+55
No. of MPP Trackers	4
No.of Strings Per MPPT Tracker	2+2+2+2
AC Output Data
Rated AC Output and UPS Power (W)	35000	40000	50000
Max. AC Output Power (W)	38500	44000	55000
AC Output Rated Current (A)	53.1/50.8	60.7/58	75.8/72.5
Max. AC Output Current (A)	58.4/55.8	66.7/63.8	83.4/79.7
Max. Continuous AC Passthrough (A)	200
Peak Power(off grid)	1.5 time of rated power, 10 S
Power Factor Adjustment Range	0.8 leading to 0.8 lagging.
Rated Input/Output Voltage/Range(V)	220/380, 230/400 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form	3L+N+PE
Total Harmonics Current Distortion (THDi)	<3% (of nominal power)
DC Current Injection	<0.5% 1n
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
Output Over Voltage Protection	DC Type II / AC Type 3
Certifications and Standards
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (ºC)	-40-60ºC, >45ºC Derating
Cooling	Smart Cooling
Noise (dB)	≤65 dB
Communication with BMS	CAN
Weight (kg)	80
Cabinet Size (WxHxD mm)	408×638×237 (Excluding Connectors and Brackets)
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

3. Specifications of Lithium Battery Pack--Rack-mounted Energy Storage Battery

Product	Nominal Voltage	Nominal Capacity	Dimension	Weight
51.2V100AH	DC51.2V	100AH	482*463*178mm	48.2KG

Nominal Voltage (V)	51.2
Nominal Capacity (WH)	5120
Usable Capacity (WH)	4608
Discharge Voltage (V)	46
Charge Voltage (V)	56
Recommend Charge/ Discharge Current (A)	50
Max. Charge/ Discharge Current(A)	100(3s)
Communicaiton	RS485/CAN/Bluetooth
Working Temperature	0-40ºC
Storage Temperature	-20-70ºC
Humidity	10%-80%
Certification	CE/ IEC/ UN38.3/ MSDS
Design Service Life	10 years+
Cycle Life	>6000@90%DOD(25±5ºC)
Electricial Design Redundancy	>20%

Packaging & Shipping
Successful Projects
FAQ
1. Are you a manufacturer?
Yes, we produce solar modules for global customers who need OEM or ODM service. And we are also official agant of Longi, Jinko and JA solar , for quality complete solar systems. 2. When is the lead time?For solar modules, the lead production time is around 10-15days . For solar systems, it depends on the capacity , usually it takes around 7~30days . 3. How does the warranty work? For solar modules, 12years products and workmanship warranty and 30years linea power guarantee.For solar systems, it depends on the products. If the products doesnot work or get broken within the warranty, we will deliver a new one, or if the model is out of markets, we will compensate the same value as the contract.

---
