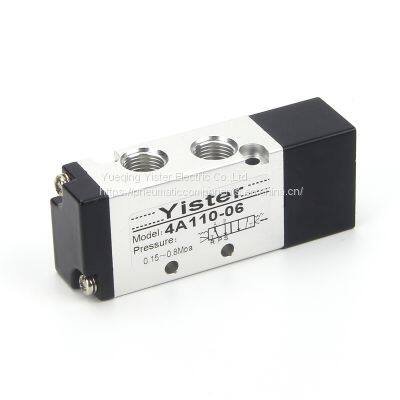

| Model | 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 |
| Fluid | Air | |||||||||
| Acting | Exterior control | |||||||||
| Valve type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
| Orifice size | 5.5mm2 | 5mm2 | 12mm2 | 50mm2 | ||||||
| Lubrication | No required | |||||||||
| Port size | In=out=Exhaust=M5 | In=out=Exhaust=G1/8” | ||||||||
| Protective class | IP65 | |||||||||
| Pressure range | 0.15-0.8MPa | |||||||||
| Proof pressure | 1.2MPa | |||||||||
| Material of body | Aluminum Alloy | |||||||||
| Temperature | -5℃~60℃ | |||||||||
| Response speed | <0.05s | |||||||||
