1150-1250MHz 50W Anti Uav Drone Lora Digital Source Signal Modules with Circulator

US$95.00
100-199 Pieces
US$90.00
200-899 Pieces
US$80.00
900-999 Pieces
US$75.00
1,000+ Pieces

Basic Info.

Model NO.
ZD-LPA-1150/1250M-50W
Support Network
WiFi GPS GSM
Information content
Data
Certification
ISO
Condition
New
Frequency Band
Customized
Output RF Port
N-F
Power Current
DC+32V
Vcc Power Supply Reference
48V/50A
Gain
50±2dB
Input Vswr
<=1.5
Transport Package
by Box
Specification
170*94*26.5mm
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month

Packaging & Delivery

Package Size
25.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg

Product Description

Detailed Photos

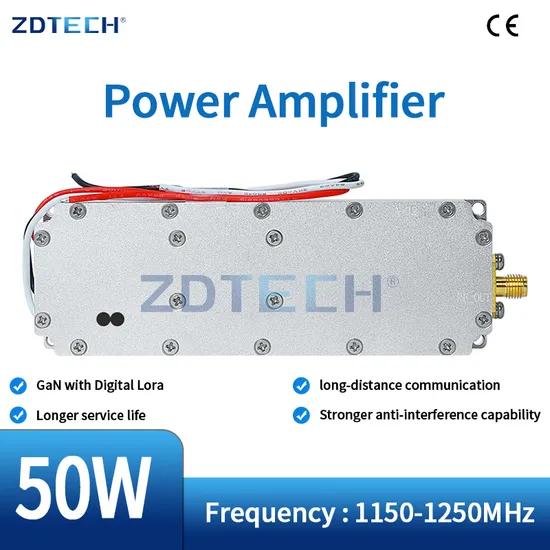

Product Description 1150-1250MHz 50W Power Amplifier
Product Features
• Frequency from 1150-1250MHz
• Class AB GaN design
• Instantaneous wide bandwidth
• 50 Ohm Input/Output impedance
• Small size and Light weight
• High reliability and Ruggedness
1. RF technical parameters
Item name Technical parameters
Working frequency 1150-1250MHz
Saturated output power 50±1dBm
Gain 50±2dB
In-band fluctuation ≤2.0dB
Out-of-band spurious 9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR ≤1.5
Gain temperature stability ≤±1.5dB
Working voltage DC+32V
Working current ≤8A
Power supply monitoring interface Power supply: 7W2 power seat
A1:32V A2:GND Pin1:PA_SW Pin2:TEMP_ALM Pin3:NC Pin4:NC
Pin5:VSWR_ALM (Warning note: normal 3V, alarm 0V)2c3x``1zwz
Output RF port N-F
Dimensions 170×94×26.5mm
Working temperature -10~+55ºC
Output RF port N-F
Dimensions 170×94×26.5mm
Working temperature -10~+55ºC
