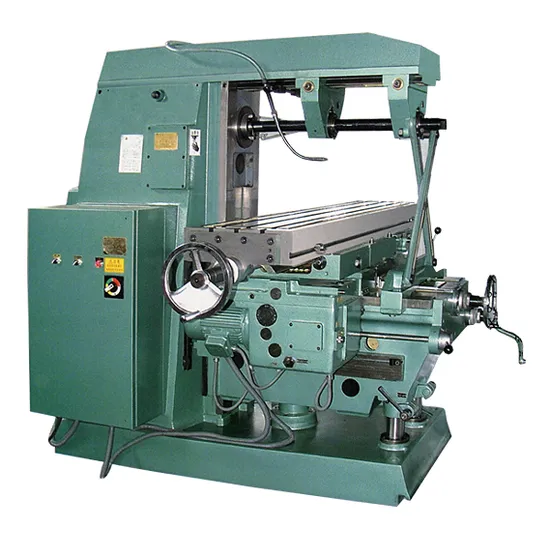

90 Degree Table Swivel Universal Knee-Type Milling Machine (HUM Series)

Product Description

Main characteristics and application:
Universal knee-type milling machine is suitable for milling flat,inclined face,angle surface,slots by employing disc cutters,angular cutters,formed cutters and face metal milling cutter.When mounted with the index,the machine will be able to perform milling operations in gears,cutters,helix groove,cam and tub wheel.
The longitudinal,cross and vertical movements of the table can both be operated by hand and power,and it can be rapidly moved.Working table and slide ways adopted quality cast hardened ensure high accuracy.
Specifications

	unit	HUM32
TABLE :
Table size	mm	1320X320
T slot	no	3
Size ( Width )	mm	18
Centre distance	mm	70
Max. load of Table	kg	500
Max.swivel of table	degree	±45º
machining range :
Table Longitudinal travel(manual/auto)	mm	700/680
Table Cross travel (manual/auto)	mm	255/240
Table Vertical travel(manual/auto)	mm	320/300
MAIN SPINDLE :
Spindle taper		ISO50 7:24
quill travel	mm	-
spindle speed /step	rpm	30-1500/18
vertical spindle axis to column surface	mm	-
vertical spindle nose to table surface	mm	-
horizontal spindle axis to table surface	mm	30-350
horizontal spindle axis to arm bottom	mm	155
arm travel	mm	500
FEEDS :
Longitudinal/cross feed	mm / min	23.5-1180/18
Vertical/step	mm/min	8-394/18
Longitudinal/cross rapid speed	mm / min	2300
Rapid Traverse vertical	mm/min	770
POWER :
main motor	kw	7.5
(X/Y/Z) feed motor	kw	1.5
coolant motor	kw	0.125
others
package dimension	cm	216x178x199
overall dimension	cm	229.4x177x166.5
N/W,G/W	kg	2650

Packing list

N0.	Name	Model	Qty
1	Machine	HUM32	1
2	Mill chuck(7:24)	ISO50(4,5,6,8,10,12,14,16)	1sets
4	wrench	S17-19,S21-24,S27-24,S32-36	each 1
5	Single head wrench	14	1
6	Inner-haxagonal spanner	5,8,10	each1
7	Shell end milling abor	ISO50-ф40	1
8	Reduction sleeve	ISO50/MT4	1
9	Oil gun		1
10	Horizontal draw bar	M24-M16	1
11	Horizontal milling bar	Φ22,ф27,ф32	Each 1sets
12	Foundation bolt	M20X500	4sets
13	Operation manual		1
14	Quality certificate		1
15	Packing list		1

---
