ASTM A105N Carbon Steel Butt Wled Branch Outlet Fittings Reinforced Forged MSS SP97

Product Details

Product Description

Product Description
Material:Standard:Wall Thickness:Connection Type:Finish:Type:High Light:

A105	MSS SP97
SCH40	BW
Black	Weldolet
Reinforced Forged Branch Outlet Fittings, Butt Wled Branch Outlet Fittings, Carbon Steel Branch Outlet

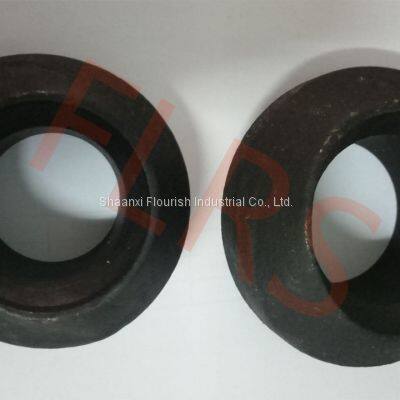

ASTM A105N Carbon Steel Butt-Wled Olet As Per Specification MSS SP97 Reinforced Forged Branch Outlet Fittings
Weldolet is the most common among all pipe olet. It is ideal for high pressure weight application, and is welded onto the outlet of the run pipe. The end are bevelled to facilitate this process, and therefore the weldolet is consider a butt weld fitting.
Weldolet is a branch butt weld connection fitting that is adhered to outlet pipe to minimizes stress concentrations. And it provides overall reinforcement.Normally it has the same or a higher schedule than the run pipe schedule, and offers a variety of forged material grades, such as ASTM A105, A350, A182 etc.
Weldolet Dimensions and WeightWeldolet dimensions ranges from 1/4 inch to 36 inch for run pipe diameter, and 1/4'' to 2'' for branch diameter. Although big brand diameter could be customized.

MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
		STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
		STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.

FAQ
Q1:How can I get more details about your products?
A:You can send an email to our email address. We will provide catalogue and pictures of our products for your reference.We can also supply pipe fittings, bolt and nut, gaskets etc. We aim to be your piping system solution provider.
Q2: How can I get some samples?
A:If you need, we will offer you samples for free, but new customers are expected to pay express charge.
Q3: Do you provide customized parts?
A:Yes, you can give us drawings and we will manufacture accordingly.
Q4:How can we trust you to make a guaranteed deal?
A:We can trade through alibaba credit guarantee orders, which will fully guarantee the effective rights and interests of buyers and sellers.
Q5: To which country have you supplied your products?
A:We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru, USA, Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.).

---
