Product Introduction

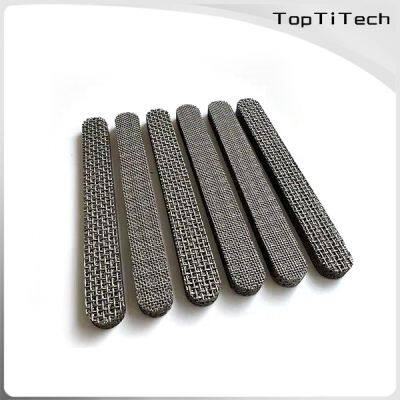

The Sintered SS 316 Wire Mesh Filter Pipe, is a brand-new kind of filter material, composed of multi-layer metal sintered mesh, which has high strength and overall rigidity. The meshes of the net are interlaced to form a uniform and ideal filtering structure.
The Sintered SS 316 Wire Mesh Filter Pipe is generally divided into five layers, which are divided into four parts: protective layer, filter layer, separation layer, and support layer. This type of filter material has a high degree of strength and rigidity, as well as uniform and steady filtration precision. It is an ideal filter material for occasions that require high requirements and uniform filter particle size.
Products Parameters
Materials: SS304、SS304L、SS316、SS316L
Filtration accuracy: 1-300um
Temperature resistance: -200 ~ 650℃
General Thickness: 1.7mm
General Size: 500mmX1000mm, 1000mmX1200mm
Compressive strength: 2-3Mpa
Products Features
A wide variety of accuracy in filtering
Have dependable filtering performance from 1 to 300
Filtration accuracy is stable
The filter layer´s wire mesh is resistant to deformation because of the protection provided by the top and lower layers of wire mesh and the sintering process of diffusion and solidification
Corrosion protection high temperature resistance below 650°C. It has a high level of corrosion protection because SS316, SS304, and other materials are used
It is simple to clean Surface filter material is used, making it simple to clean and particularly suitable for backwashing
Products Application
Stainless steel sintered mesh is a new type of filter material with high strength and overall rigidity made of stainless steel mesh through special lamination and vacuum sintering. The meshes between the layers of mesh are interlaced to form a uniform and ideal filter structure.
Widely utilized in the food and pharmaceutical sectors, particularly in two-in-one and three-in-one medical devices.
Precise filtration of various hydraulic oil lubricants in the machinery industry;
Filtration and purification of various polymer melts in the chemical fiber film industry, filtration of various high-temperature and corrosive liquids in the petrochemical industry, and filtration of corrosive liquids in the pharmaceutical industry filtration, washing and drying of materials;
The use of fluidized plates in the steel business and gas homogenization in the powder industry;
Distributors in explosion-proof electrical appliances, etc.
Package and Shipment
1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.
2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
Contact Us
TEL: +8619992203758
FAX: 0917-3873009
Email:karrykang@bjygti.com
Company: TOPTITECH —— BAOJI YINGGAOCO., LTD
Website:/
ADD: No. 195, Gaoxin Avenue, High-tech Development Zone, Baoji City, Shaanxi, China
>>
