Product Description
Product Description

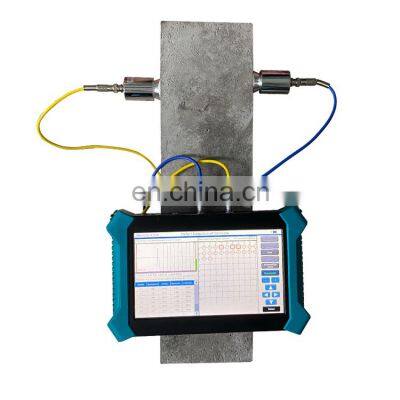

Product Usage and FeaturesU910/U920Non-metallic ultrasonic detectorUSAGE OVERVIEWU910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.PRODUCT FEATURES1.Five functions of measuring pile, strength, defect, sounding depth and width measuring;2.Semi-transparent, high-brightness, TFT color LCD screen;3.Full touch screen operation, simple and convenient, stable and reliable;4.Large memory capacity and working time over 10 hours;5.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic rebound;6.U-disk transfers data and supports software upgrading through U-disk;7.Special analysis software. The data analysis and processing, report generation, and report printing can be completed easily.Technical ParametersProduct ModelU910U920Master control unitBuit-in A9 industrial control motherboardBuit-in A9 industrial control motherboardDisplay10.1 inch, high brightness, TFT color LCD capacitive screen10.1 inch, high brightness, TFT color LCD capacitive screenOperational modeTouch screenTouch screenStorage modeBuilt-in Electronic Hard Disk(>8GB)+Large Capacity U DiskBuilt-in Electronic Hard Disk(>8GB)+Large Capacity U DiskData transmission modeWireless Cloud Transport(Options)Wireless Cloud Transport(Options)Acquisition modeSingle-channel, manual point-by-point acquisitionManual point-by point collection of single and double channelsNumber of dispossable profiles--Channel number1 transmit+1 receive1 emission+2 receptionTrigger modeSignal triggeringSignal triggeringSampling period(μs)0.05~409.6 Multistage Options0.05~409.6 Multistage OptionsAcoustic time accuracy(μs)0.050.05Acoustic time range(μs)+1677700+1677700Width measurement functionRange: 0~10mmAccuracy: 0.01mmRange: 0~10mmAccuracy: 0.01mmDynamic range(dB)146146Bandwidth(kHz)1~5001~500Emission voltage(V)65, 250, 500 and 1000 gears adjustable65, 250, 500 and 1000 gears adjustableCommunication UBS, Bluetooth, WifiUBS, Bluetooth, WifiWorking hours(h)More than 8More than 8Power supply modeBuilt-in lithium batteryExternal 220V~ 16V AC/CDBuilt-in lithium batteryExternal 220V~ 16V AC/CDWorking environmentTemp.: -10℃~ + 40℃Humidity(RH) <90%Temp.: -10℃~ + 40℃Humidity(RH) <90%Host size(mm)300*200*55300*200*55Detailed ImagesWelcome to contact us! Get our online support! Any questions, our product specialists advise you in technical and application questions.Five measuring functions: 1. Continuous inspection of foundation piles (ultrasonic projection method) 2. Continuous wall integrity detection 3. Concrete compressive strength test (ultrasonic rebound comprehensive method) 4. Depth detection of crack 5. Width detection of crackU910/U920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity.Full touch screen operation, simple and convenient, stable and reliable.Company IntroductionCangzhou Lovely Technology Co., LtdCangzhou Lovely Technology Co.,Ltd. is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.Packing & DeliveryAfter Sales ServiceFAQQ1:Are you a factory or trading company?A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.Q2:Where is the nearest loading port?A:Qingdao port or Tianjin port.Q3:What’s the MOQ of the product? A: One set.Q4:Did your factory pass the ISO 9001? A: YES.Q5:How long is the production cycle after ordering?A:Based on the order. Generally it is about 3-10 days.Q6:What is the payment method?A:T/T payment, West Union, L/C payment ect.Q7: Do you support customizing service?A: Yes, we could customize the out package, machine's color, Logo and Voltage as request. With more than 12 years' production experience. We would give you an excellent experience!
>>
