Welcome to visit

High Precision 3 Axis Turret Variable Speed CNC Milling Machine Xk6325

US$25,000.00
1-9 Sets
US$15,000.00
10+ Sets

Basic Info.

Model NO.
XK6325
Type
CNC Milling Machine
Object
Hardware
Structure
CNC Turret Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Hardened Guideway
Worktable Size
254X1270mm
X/Y/Z Axis Travel
750/400/103mm
Spindle
R8 ISO40
Milling Head
3HP or 5HP
Delivery Time
Two Month
X/Y/Z Axis Motor
Servo Motor
Voltage
Customized
Spindle Speed
4540rpm
Color
Customized
3-Axis Rapid Feed
Standard
Variable Speed Milling Head
Optional
Table Loading
280 Kgs
Control
GSK Siemens CNC System
Air Drawbar
Optional
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg

Product Description

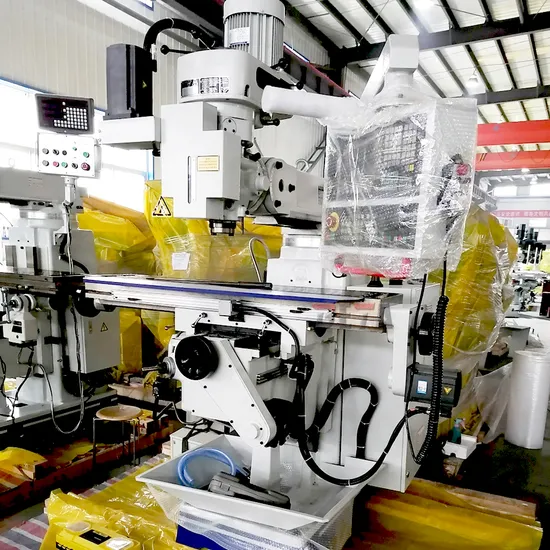

High Precision 3 Axis Turret Variable Speed CNC Milling Machine XK6325
Model Unit XK6325 XK6330
Table size mm 254×1370 305×1370
T slots n*mm 3×16 3×16
Table loading kg 280 350
X axis(table longitudinal move)travel mm 750 800
850 900
Y axis(table cross move)travel mm 400 360
Z axis(Quill move)travel mm 103 103
X/Y/Z axis servo motor kw 1 1
Knee vertical travel mm 400 380
Ram travel mm 470 500
Distance from spindle to table mm 0-400 0-380
Spindle speed Atandard:16 steps rpm 50HZ:66-4540
60HZ:80-5440		 50HZ:66-4540
60HZ:80-5440
Optional:Variable 60-4200 60-3600
Spindle taper Standard:R8/Optional:NT40 NT40
Motor power HP 3 5
Head rotating Swiveling degree 90° 90°
Tilting 45° 45°
CNC controller GSK/Siemens GSK/Siemens
Packing size mm 1900×2000×2230 2000×2000×2250
G.W kg 1400 1800

Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
