Product Details
Product Description
Product Description

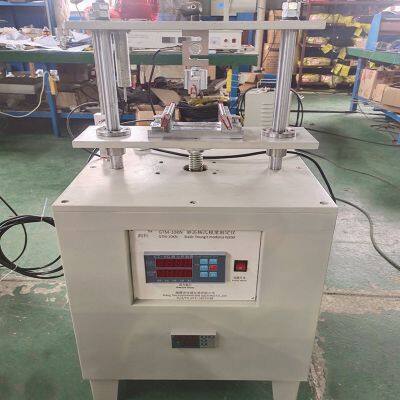

Product Introduction:This instrument uses the three-point bending loading method to measure the elastic modulus of non-metallic materials such as ceramics, and is composed of an electric loading system, a deformation measurement system, a pressure measurement system and a computer measurement and control system. The deformation measurement system uses a high-precision displacement sensor to measure the micro-strain. The pressure measurement system uses high-precision pressure sensors and digital pressure gauges for measurement. The three major measurement and control systems are controlled by computers to achieve fully automatic testing, data processing, and printout test reports.
Main technical parameters：1. Maximum load: 0~10000N;
2. Force measurement accuracy: relative error ≤ ± 0.15%;
3. Deformation measurement range: ± 5mm;
4. Deformation accuracy: relative error ≤± 0.5%;
5. Loading deformation rate: adjustable from 0 to 1mm/min;
6. Sample size: ≤ 120 * 100mm (conventional, according to GB/10700-2006);
Or: 820 * 100mm (according to GB/T223266-2009 standard);
(Other specifications can be customized according to user requirements)
7. Voltage: 220V, 50HZ;
Configuration: Includes one GTM-II-10KN testing host, one set of software, one set of testing fixtures, and one desktop computer (configured according to the contract).
>>
