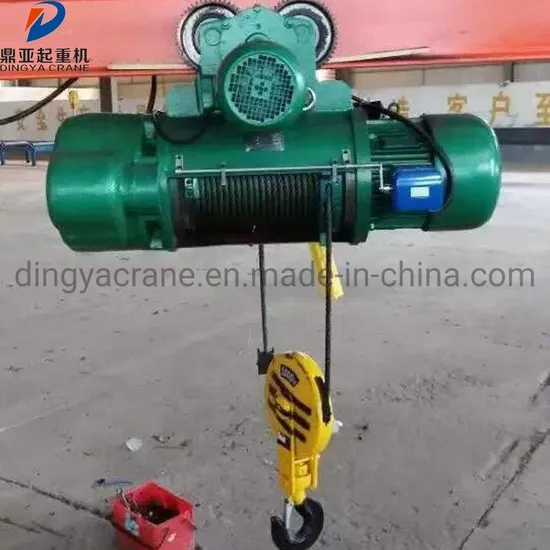

Dy Top Selling 380V 220 V Mini Cable Electric Wire Motor Hoist

Product Description

High Quality Motorized Driven Electric Wire Rope Hoist For Cranes Features of wire rope hoist Wire rope electric hoist features:
1. The reducer
Electric hoist adopts three-stage fixed shaft helical gear transmission mechanism, gear and gear shaft are made of heat-treated alloy, box body and cover are made of high quality cast iron, with strict assembly and good sealing.The reducer is a part of itself, on which loading and unloading are very important.
2. The control box
The wire rope electric hoist adopts the device which can cut off the circuit in case of emergency and has up and down stroke to protect the stop fire limit device.Maintain the safe operation of electric hoist.Electrical components long life, reliable use.
3. The steel wire rope
Gb1102-74 (6 37+) type hoisting wire rope is adopted to ensure its durability.
4. Taper motor
The hoisting motor adopts the tapered rotor braking asynchronous motor with large starting torque, without the need of external brake.The motor load duration is 25%. The motor is insulated with class B or class F, and the motor protection grade is IP44/IP54.
5. Push button switch
Manual operation type light and convenient, there are two ways of rope longitudinal and cordless remote control.

Brand	Product Name	Color	Travelling Speed(m/min)	Lifting Speed(m/min)	Working Duty
Dingya Crane	Electric Wire Rope Hoist	Yellow/Red/Customized	0~20	0.8/8	M3/M4

RFQ :
1.What the information should i provide when i am inquiry?
Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.
2.How many operation methods for my selction?
Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
3.The space of my workshop is limited, can the crane ok for me?
Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.
4.Do your side can provide lifting tools?
Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

---
