Welcome to visit

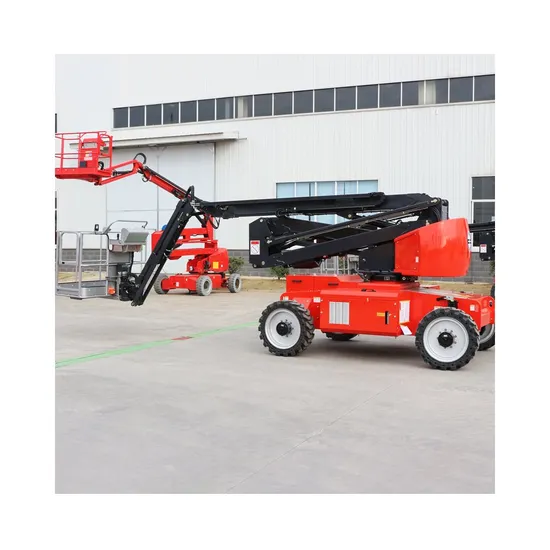

10-20m Building Material Shops Telescopic Articulated Lift Mini Towable Boom Lift

US$30,000.00
1-2 Pieces
US$22,999.00
3+ Pieces

Basic Info.

Model NO.
EAB22J
Application
Workshop Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Working Height
6-63m
Color
Customers′ Requirements
Weight
18500 Kg
Power
75kw
Overall Dimensions
10300*2200*1200mm
Product Name
Hydraulic Platform Lift
Transport Package
Box
Specification
10300*2200*1200mm
Trademark
everstar
Origin
China
Production Capacity
500000 Set/Years

Product Description

Product Description

Detailed Photos

Product Parameters

16-34m Diesel Telescopic Boom Lifts
Model
ETB16J
 ETB20J
 ETB22J
 ETB24J
 ETB29J
 ETB30J
 ETB34J
Max. Working Height(m)
16
 20
 21.9
 23.7
 28.7
 30
 34
Max. Platform Height(m)
14
 18
 19.9
 21.7
 26.7
 28
 32
Max. Lift Capacity(kg)
230
 480
 300
 480
 480
 480
 480
Max. Horizontal Outreach(m)
12.6
 15
 13.7
 15.8
 18.5
 20.6
 20.6
Stowed Length(m)
8.55
 9.07
 10.06
 9.1
 10.76
 12.79
 12.6
Stowed Width(m)
2.38
 2.5
 2.5
 2.5
 2.5
 2.58
 2.58
Stowed Height(m)
2.63
 2.58
 2.86
 2.85
 2.83
 2.87
 2.95
Platform Size
1.83×0.76
 2.44×0.91
 2.44×0.91
 2.44×0.91
 2.44×0.91
 2.44×0.91
 2.44×0.91
Wheel base
2.4
 2.38
 2.5
 2.5
 3
 3
 3
Drive speed stowed(km/h)
5
 5
 5
 5
 5
 5
 5
Gradea bility
45%
 45%
 45%
 45%
 45%
 45%
 45%
Engine Power(kw)
≈36kw@2400rpm~2600rpm
Fuel tank capacity(L)
100
 100
 100
 100
 100
 151
 151
Weight(kg)
7500
 9500
 9400
 10400
 12600
 16800
 18500

40-63m Diesel Telescopic Boom Lifts
Model
ETB40J
 ETB48J
 ETB58J
 ETB63J
Max. Working Height(m)
40.4
 48
 58
 63
Max. Platform Height(m)
38.4
 46
 56
 61
Max. Lift Capacity(kg)
480
 480
 480
 480
Max. Horizontal Outreach(m)
24
 23.6
 26
 26
Platform Size
2.44×0.91
 2.44×0.91
 2.44×0.91
 2.44×0.91
Wheel base
3.66
 3.96
 5.6
 5.6
Drive speed stowed(km/h)
4.4
 4.4
 4.4
 4.2
Gradea bility
40%
 40%
 40%
 40%
Engine Power(kw)
≈54kw@2400rpm~
2600rpm
 ≈54kw@2400rpm~
2600rpm
 ≈54kw@2600rpm
 ≈74kw@2200rpm
Fuel tank capacity(L)
151
 151
 200
 200
Weight(kg)
21800
 23110
 27500
 28500

After Sales Service

Certifications

Company Profile

Please contact me for exact price
