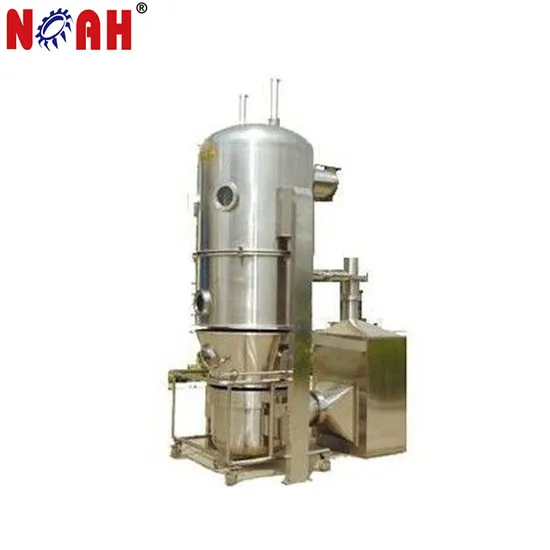

Pgl Milk Powder Automatic Spraying Dryer Granulator

Product Description

Pgl Milk Powder Automatic Spraying Dryer Granulator
General of applications:
PGL machine is suitable for Chinese traditional medicine granule, such as capsule and no or low sugar and tablet or coating of granule.
Features of equipment:
1. Multi-fluid nozzle. Particularly it is suitable for material that contains component of amylase and has strong viscosity or heat sensitive product.
2. The structure of spraying drying chamber, filting chamber, fluid-bed and secondary air supply system has been improved greatly. It can appear the features of spraying drying deeply.
3. Designed and manufactured laid out by GMP
4. Can realize continuous spraying process of immersed paste.
5. Simple and reliable operation
6. Improve spraying and drying efficiency
7. Compared with FL, the fluid-bed is more constant and the adjusted air amount is more reasonable. The drying degree is improved and the "died bed" is overcome.

Specification Item		3	5	10	20	30	40	80	120	150
Container of material	L	26	50	100	220	300	420	670	1000	1500
Liquid speed	kg/h	2-4	4-6	6-15	15-25	20-40	30-60	60-100	20-160	100-200
Specific gravity of liquid	kg/L	≤ 1.3
(0.6Mpa )Consumption of steam	kg/h	25	50	120	160	240	280	300	380	465
(0.6Mpa )Compressive air	m 3 /min	0.4	0.6	0.9	0.9	1.1	1.1	1.3	1.6	1.8
Auxiliary fan	KW	0.55	0.75	0.75	1.1	1.5	1.5	1.5	2.2	2.2
Main fan	KW	3	4	7.5	11	18.5	18.5	22	30	37
Installation size for reference	H 1 (mm)	1900	2360	2680	3150	3630	3630	4120	5050	5400
	H 2 (mm)	190	260	340	490	540	590	690	890	990
	H 3 (mm)	1680	2140	2460	2930	3410	3410	3900	4830	5180
	φ1 (mm)	400	550	700	1000	1100	1200	1400	1800	2000
	φ2 (mm)	150	180	180	250	280	280	315	355	355
	B (mm)	860	1010	1160	1460	1660	1760	1860	2060	2260
	C (mm)	1500	1550	1250	1400	1450	1500	1600	1800	2000

---
