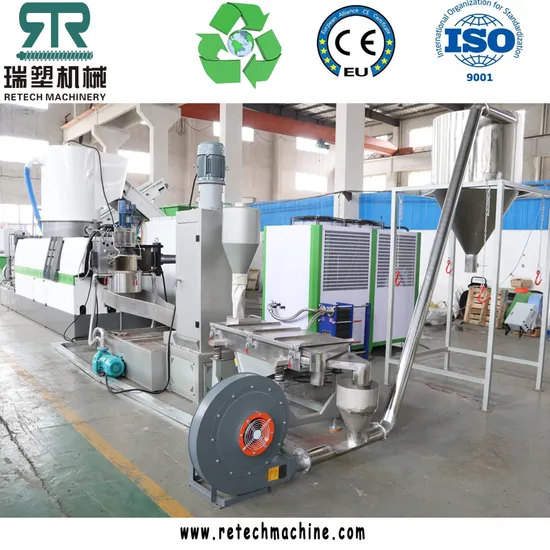

High Capacity Plastic LDPE LLDPE HDPE Film Recycling Pet Film Compactor Granulation Recycling Machine

US$12,000.00-100,000.00 1 Set (MOQ)

Basic Info.

Model NO.

RHDJ

Material Processed

Film

Plastic Type

HDPE LDPE LLDPE PP Film

Screw

Single-Screw

Automation

Computerized

Customized

Certification

ISO9001:2008, CE

Color

Could Be Customized

Type of Extruder

Deagassing Tyep

After-Sale Service

Engineers Available to Service Machinery Overseas

Stage

Doulbe or Single or Multi

Feeder Type

Force Feeder or Compactor

Machine Type

Single or Double Stage Pelletizing

Material Processing

Compacting ---Pelletizer---Cutting ---Drying

Raw Materia

PP PE Film,Bag ,Bottle Flakes,etc

Keywords

PP PE Plastic Granulating Machine

Name

Plastic Recycling Granulator Machine

Machine

PP PE Pelletizer Line

Transport Package

Wrap Film

Specification

TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180

Trademark

RETECH

Origin

China

HS Code

8477201000

Production Capacity

300~3000kg/H

Packaging & Delivery

Package Size

2200.00cm * 400.00cm * 500.00cm

Package Gross Weight

12000.000kg

Product Description

High Capacity Plastic LDPE LLDPE HDPE Film Recycling Pet Film Granulation Recycling Machine
Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), HDPE Bags, etc.
Note, our RC series compactor granulator can be pull strip cutting method,or water ring cutting method for option

Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet.
Product Parameters
For Compactor Pelletizing Line:

Model	Diameter of screw	PE capacity	PP capacity
TCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
TCSJ-85/85	Φ85/85mm	150-200kg/h	100-150kg/h
TCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
TCSJ-100/100	Φ100/100mm	280-350kg/h	250-300kg/h
TCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
TCSJ-130/130	Φ130/130mm	480-550kg/h	400-500kg/h
TCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
TCSJ-160/160	Φ160/160mm	650-800kg/h	600-750kg/h
TCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
TCSJ-180/180	Φ180/180mm	800-1200kg/h	750-1000kg/h

For Force Feeder Film Pelletizer:

Model	Diameter of screw	PE capacity	PP capacity
TSDJ-100	Φ100mm	100-150kg/h	90-120kg/h
TSSJ-100/100	Φ100/100mm	100-150kg/h	90-120kg/h
TSDJ-120	Φ120mm	200-250kg/h	180-200kg/h
TSSJ-120/120	Φ120/120mm	200-250kg/h	180-200kg/h
TSDJ-150	Φ150mm	280-350g/h	250-300kg/h
TSSJ-150/150	Φ150/150mm	280-350g/h	250-300kg/h
TSDJ-180	Φ180mm	380-420kg/h	320-360kg/h
TSSJ-180/180	Φ180/180mm	380-420kg/h	320-360kg/h
TSDJ-200	Φ200mm	450-500kg/h	380-400kg/h
TSSJ-200/200	Φ200/200mm	450-500kg/h	380-400kg/h
