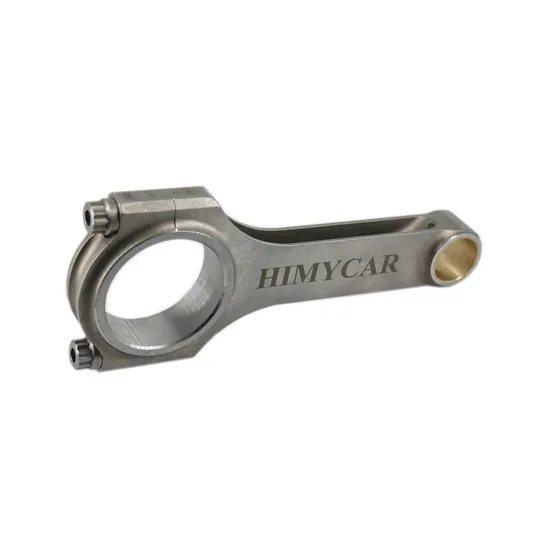

Himycar Forged H-Beam Connecting Rods Fit Mitsubishi 4G63 150mm 22mm Pin+ Botls

US$239.00
1-19 Sets
US$159.00
20+ Sets

Basic Info.

Model NO.
CR-MIT4G63-HP22B
Warranty
12 Months
Engine Type
Gasoline
Material
40cr
Center to Center Length
150.01mm/5.906"
Big End Bore Diameter
48.00mm/1.890"
Big End Width
26.37mm/1.038"
Small End Bore Diameter
22.00mm /0.866"
Small End Width
26.37mm/1.038"
Beam Style
H-Beam
Connecting Rod Bolt Diameter
3/8′′-24unf-3b-1.600L
Advertised Horsepower Rating
600-800HP
Transport Package
Carton Packaging
Specification
H-beam
Trademark
HIMYCAR
Origin
China
Production Capacity
50000

Packaging & Delivery

Package Size
22.50cm * 15.00cm * 8.00cm
Package Gross Weight
2.500kg

Product Description

4 Pieces Per Set
Center to Center Length: 150.01mm/5.906"
Big End Bore Diameter: 48.00mm/1.890"
Big End Width: 26.37mm/1.038"
Small End Bore Diameter: 22.00mm /0.866"
Small End Width: 26.37mm/1.038"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8''-24unf-3b-1.600L
Approximate Connecting Rod Weight: 570g/piece
Advertised Horsepower Rating: 600-800HP
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
1981-1987 Mitsubishi Lancer EX 2000 Turbo
1997-2000 Mitsubishi Canter
1983-1998 Mitsubishi Chariot
1988 Mitsubishi Cordia
1985-1998 Mitsubishi Delica
1990-1999 Mitsubishi Eclipse
1980-2003 Mitsubishi Galant
1983-1989 Mitsubishi L200/Mighty Max
1992-2007 Mitsubishi Lancer Evolution
1993-1998 Mitsubishi Pajero
1994-1998 Mitsubishi RVR
1982-1987 Mitsubishi Starion
1988 Mitsubishi Tredia
2003-2005 Mitsubishi Airtrek
1999-2005 Mitsubishi Dion
2004-2010 Brilliance BS6
1983-1992 Dodge Colt Vista
1987-1989 Dodge Ram 50
1989-1992 Eagle Vista Wagon
1990-1998 Eagle Talon
