Specification
| DN50-DN2000 (2"-80"), available with PN10, PN16, PN25 and PN40 flanges.
|
Standard
| ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295
|
Pipe ends
| Flanges.
|
Internal coating
| Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating
|
External coating
| Sprayed metallic zinc coating (min.150g/m) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer's requirements.
|
Test
| In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
|
Accessories
| NBR, SBR, EPDM rubber ring according to ISO4633 / EN681.1 are available.
|
Application
| Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.
|
Types

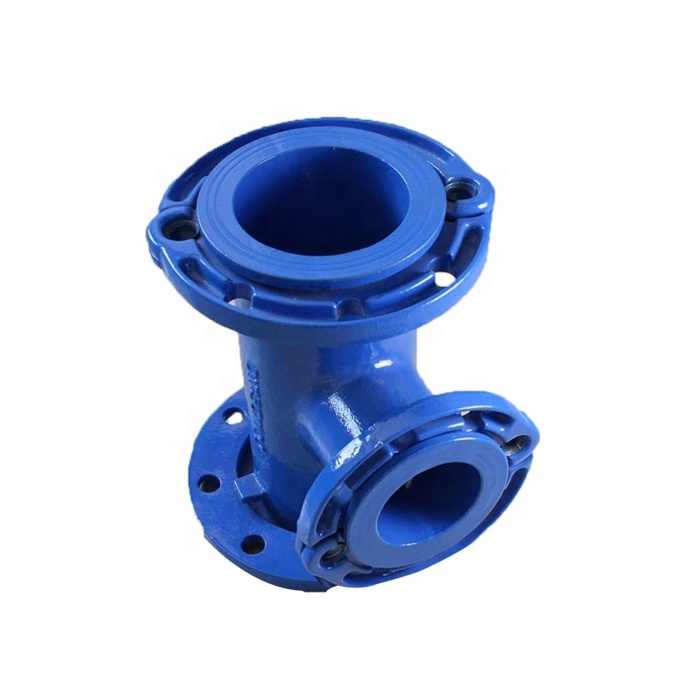

| Ductile Iron Loose Flange Joint
|
