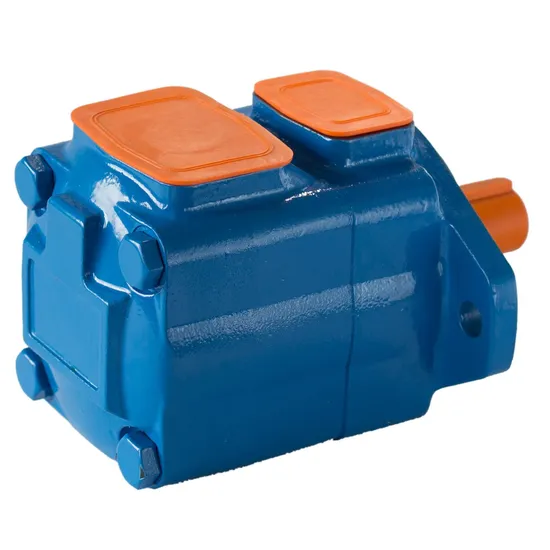

Eaton 25vq High Pressure Vickers Hydraulic Rotary Vane Pump

Product Description

Product Description Eaton 25VQ high pressure vickers hydraulic rotary vane pump
VQ high pressure vickers hydraulic rotary vane pump are high performance composition vane pumps for walking machinery.
The series high pressure resistant composition vane pumps with high performance are developed for engineering machinery application,especially for walking machinery.
The main features are as follows:
1.Adopt the structure of hydraulic balancing composition vanes,making the resistant pressure higher to maximum 21 Mpa.
2.Adopt the structure of floating side plate supporting with its function of automatic tolerance compensation,which helps to get pressure balance and high performance under high rotation speed and high pressure.
3.Adopt bimetal flexible material for side plates,which dramatically improves the engagement performance of the gears and thus makes the pump working better and longer.

Detailed Photos
Product Parameters

(F3-)	25VQ	21	A	(F)	-1	A	20	L
Front marks	Code of series	Disnlacemen codes	Pump por connection	Mountinf type	Shaft extension	Outlet port position	)esignin No	Direction of rotation
No mark: waterin oil emulsion o petroleum series F3: F3: Sul phosuccinic ester fatty of acid	20VQ	2,3,4,5,6,7,8,9 10,11,12,14	A-SAE 4 A.bolted Flange	No mark Flange mounting F-Foot mounting	1- 1-straight shaft with kev 151- 151-spline shaft	() (from cover end pump A- A-Opposition of inlet B-90 B-counterclockwise 90 from inlet C- C-the same side of inle D-90° D-Clockwise 90° from inlet	30	( (from shaft end pump) L- L-counterclockwise otation No marks: Clockwise rotation
	25VQ	10,12,14,15,17 19,21			1- 1-straight shaft with ke 86- 86-heavy-duty straight shaft with key 11- 11-spline shaf		20
	35VQ	21,25,30,32,35 38,45
	45VQ	42,45,50,57,60 66,75

Models	Displacement code	Geometric displacemen (ml/r)	Max speed (r/min)	Max pressure (Mpa)	Typical outlet flow (L/min) under Max speed and Max pressure	Typical outlet power (KW) under Max speed and Max pressure	Weight
20VQ		7	2700	21	16.4	7.2	11.8
		11.7	2700	21	24.4	10.8
		15	2700	21	32.7	144
	5	18	2700	21	42.3	17.9
	6	19	2700	21	50.6	21.5
		22	2700	21	58.8	23.7
		27	2700	21	56.4	25.1
	9	30	2700	21	73.4	26.0
	10	31.5	2700	21	81.7	26.8
	11	36	2700	21	88.5	27.7
	12	40	2700	16	96.5	28.4
	14	45	2700	14	115.4	29.1
25VQ	10	32.5	2700	21	81.4	35.2	14.5
	12	38.3	2700	21	88.5	41.0
	14	43.3	2700	21	103.8	46.6
	15	47.3	2500	21	109.4	48.1
	17	52.5	2500	21	119.2	51.8
	19	60	2500	21	133.5	55.2
	21	65.0	2500	21	146.2	61.9
35VQ	21	64.0	2500	21	145.5	63.7	22.7
	25	79.2	2500	21	173.1	75.3
	30	95.0	2500	21	211.5	87.7
	32	101	2500	21	220.2	92.2
	35	109	2400	21	230.8	98.5
	38	118	2400	21	250	104.4
	45	147	2400	21	271.2	99.8
45VQ	42	134	2400	17.5	255.8	91.4	34.1
	45	147	2200	17.5	271.2	99.8
	50	156	2200	17.5	303.8	105.2
	57	180	2200	17.5	343.7	120.2
	60	189	2200	17.5	369.2	126.8
	66	208	2200	17.5	408.7	142.4
	75	237	2200	14	460	120.2
