720P 4CH CCTV Camera Passenger Counter MDVR System Bus People Counting Binocular Camera

Product Details

Product Description

Product Description

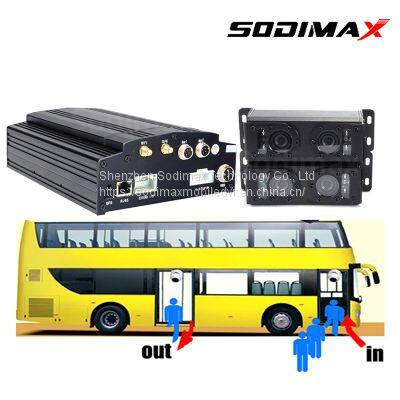

720P 4CH CCTV Camera Passenger Counter MDVR System Bus People Counting Binocular Camera
Binocular 3D passenger counter equipment uses two cameras to obtain 3D information of the moving objects. Its principle is similar to two of human eyes. The head, shoulder and height of two different target images will be compared, so as to achieve more accurate passenger counting. It is a technology based on multiple fields including video processing, image processing, pattern recognition and artificial intelligence. The device can integrate people's movement, color, contour and other features, and obtain the head detector through a large number of sample training. When detection and tracking of the heads in the video, the number and direction of people passing through the area are judged. We believe this "people counting" equipment designed specifically for human body features is more consistent with the significance of passenger calculating.
Image Sensor:1/3 SONY CCD
TV System: PAL/NTSC
TV Lines:700TVL
Image Output:Synchronous sampling output
Lens’ Spacing:5MM
Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
Viewing Angle:55 degree
Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
2.3M~2.5M(4MM len)
Detecting Door Width Range:0.4M~1.2M
White Balance:Auto
Shutter:1/50-1/80000(s) 1/60-1/80000(s)
Frame rate:25 FTPS
Video Output Interface:Composite video output, 75Ω 1Vp-p Aviation
Gain:Auto
SNR:＞48db
Power Supply:DC12 V
Power:≤1W
Working Temperature:-30～+55℃
Relative Humidity:10%～90% Not condensed
Cooling: no active cooling, passive structure with heat dissipation
Product Size:155(L)*50(W)*55(H)MM
Weight:0.32KG
Contact Way:Connected when touch, disconnected when separate
Max Power:10W
Min Switch Voltage:100VDC
Avalenche Voltage:200VDC
Max Switch Current:0.5A
Max Load Current:1A
Max Contact Resistance:100mΩ
Min Insulation Resistance:10~10Ω
Moving Time:0.4ms
Bounce Time:0.3ms
Release Time:0.05ms
Max Working Frequency:5000±400HZ
Sensitivity:07-10AT
Minimum Reset Index:5AT
Max Contact Capacity:0.3pF
Housing Material:Zinc Alloy
Product Color: Gray
Working Temperature:-30℃~80℃
Working Relative Humidity:≤95%(40℃)
Sense Magnetic /Release Distance:35-45MM

---
