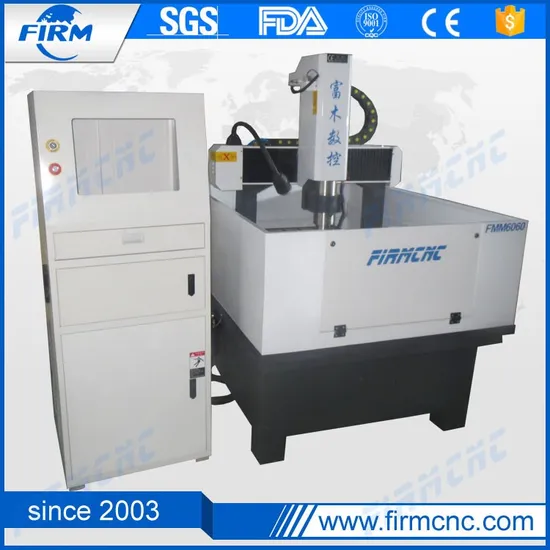

Heavy Metal Shoes Mould Making Machine FM6060

Product Description

Heavy Metal Shoes Mould Making Machine FM6060
Control box:
Applications:
Hard metals,like MS,SS,etc.
Soft metals,like aluminium,brass,etc.
Samples:
Advantages:
1. Free samples(I can help you process samples for free.)
2.Warranty:2 years
3.English software, user manual and operation CD videos.
4.Door-to-door technical service and 24 hours technology online support with Skype,WhatsApp,QQ or by mail and phone.
5.International quality certificate:CE,ISO9001:2008,Electrical components are UL and CE certificated.
6.Every cnc router machine must be tested for 18 hours before delivery , so all of them are absolutelyqualified.
Configurations:
# Working area: 600*600*200mm
#The whole cast iron bed,heavy-duty
#3.0kw constant water cooling spindle
# 3.7kw Taiwan Delta Inverter
#750W YASKAWA servo motor and drivers
# Original NC Studio control system
# 1605 Taiwan TBI ball screw
# 20mm Taiwan Hiwin squre rails
# tool sensor
# filter
# ER20 colletParameters:

Model	FMM6060
X,Y,Z Working Area	600*600*200mm
Table Size	750*750mm
X,Y,Z Traveling Accuracy	0.01mm
X,Y,Z repositioning Accuracy	0.01mm
Table Surface	T-slot
Frame	Cast iron
X, Y,Z Structure	Taiwan Hiwin linear & TBI Ball Screw
Max. Rapid Travel Rate	20m/min
Max. Working Speed	15m/min
Spindle Power Motor	3.0Kw constant power water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	YASKAWA Servo motor
Working Voltage	AC380V,50HZ, 3PH/220V, 60HZ,1PH
Command Language	G code
Packing Size	1560*1630*1900mm
Packing Weight	1550KG

Our company:
Jinan Firm CNC Equipment Co ., Ltd is located in Jinan, Shandong Province,which specializes in manufacturing CNC and laser machines. Our main products are CNC Router and Laser Machine. 5-Axis Machine Center, 4-Axis Machining Center, 3-Axis ATC CNC Router , General 3-Axis CNC Router, CNC Plasma Cutting Machine. We have two factories for product. The application covers Woodworking, Advertising,Marble, Metal,Nonmetal,MDF,Plastic,etc.Our products are widely sold in many European, American countries,Africa,Asia, ect.
We are still trying our best to product innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please do not hesitates to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
Certificates:
Paking&shipment:
Save space as much as possible for container loading. Inside:Water-proof Plastic Film Package With Foam Protection Outside:Solid Seaworthy Wood Box Package Below: Steel Tube

FAQ: 1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.

---
