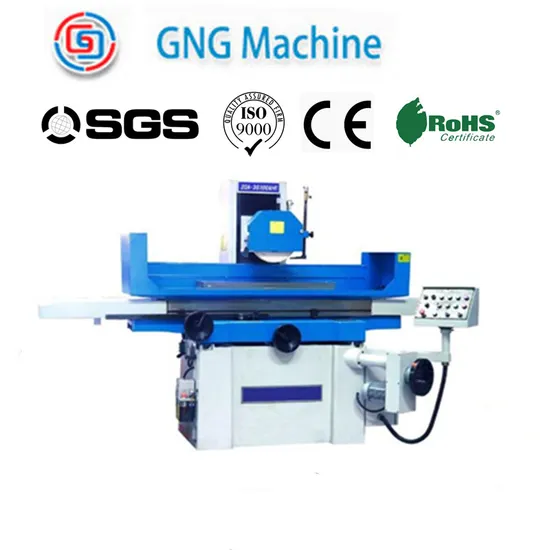

| SGA saddle moving surface grinder | ||||||
| Item/Model | Unit | SGA-3063AH | SGA-30100AH | SGA-4080AH | SGA-40100AH | |
| SGA-3063AHR | SGA-30100AHR | SGA-4080AHR | SGA-40100AHR | |||
| SGA-3063AHD | SGA-30100AHD | SGA-4080AHD | SGA-40100AHD | |||
| table size(WxL) | mm | 305x635 | 305x1020 | 406x813 | 406x1020 | |
| max. longitudinal travel | mm | 765 | 1130 | 910 | 1130 | |
| max. cross travel | mm | 340 | 340 | 450 | 450 | |
| max. distance from spindle center to table | mm | 580 | 580 | 580 | 580 | |
| electro magnetic chuck size | mm | 300x600 | 300x1000 | 400x800 | 400x1000 | |
| speed of table longitudinal movement | m/min | 7-23 | ||||
| table transverse movement | auto feed | mm/min | 0.1-8 | |||
| rapid speed | mm/min | 990 | ||||
| feed of handwheel | mm/div | 0.02 | ||||
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) | |||
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) 240(only for AHD model) | ||||
| feed of handwheel | mm/div | 0.005 | ||||
| grinding wheel | speed | rpm | 1450(50Hz), 1750(60Hz) | |||
| eize(ODxWxID) | mm | 350x40x127 | ||||
| spindle motor | kw | 5.5 | ||||
| hydranlic motor | kw | 2.2 | ||||
| cooling pump motor | kw | 0.125 | ||||
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) | ||||
| cross feed motor | kw | 0.04 | ||||
| max. loading capacity of table(include chuck) | kg | 270 | 400 | 500 | 600 | |
| total rated power | kw | 9 | ||||
| height of machine | mm | 1890 | ||||
| floor space(LxW) | mm | 2900x2200 | 4400x2200 | 3600x2400 | 4400x2400 | |
| Gross weight | kg | 2600 | 3300 | 3500 | 4000 | |
| package dimensions(LxWxH) | mm | 2350x2220x2150 | 2950x2220x2210 | |||
