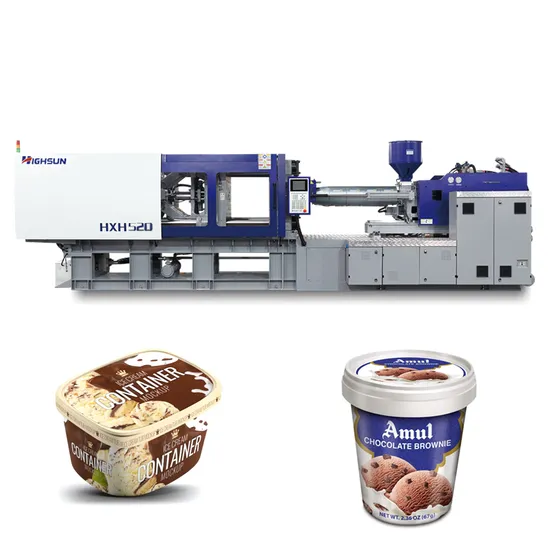

2023 CE Standard Long Service Life New Style High-Speed Injection Molding Machine for Thin Wall Product Hxh520

Product Description

HXH High-speed Series Plastic Injection Moilding Machine
Larger space between tie-bar
The stress distribution of each part of the machine during operation is analyzed by software, the design of the clamping part is optimized according to the high-speed molding requirements for thin-walled products. The HXH series has a larger mold volume compared with the same models from different manufacturers.
Lower energy consumption
All configuration (power system, heating system, cooling system) is optimized according to the requirements of the product molding cycle (fast) and molding characteristics (thin wall). After the test and comparison of clients, it is found that under the same mold and the same output, HXH series can save about 12%-15% energy consumption compared to other brands.
Lighter product weight
The optimized clamping unit ensures the appearance of the product and optimizes the exhaust effect of the mold by using a reasonable clamping pressure. It performs injection molding at a high speed to realize the lightweight of the product
Lower lubricating cost
The unique lubricating and recyclable device realizes the reuse of lubricating oil through the recycling and filtering of lubricating oil, which saves costs for customers. The average annual saving of lubricating oil is about ¥18,000 (lubricating 1 every 300-500 shot)

MODEL: HXH520
TECHNICAL PARAMETER TABLE			A	B
INJECTION UNIT	SCREW DIAMETER	mm	55	60
	SCREW L/D RATIO	L/D	24	22
	INJECTION CAPACITY IN THEORY	cm3	582	692
	INJECTION WEIGHT(PS)	g	529	630
	INJECTION PRESSURE	MPa	190	160
	INJECTION VELOCITY	mm/s	490
	PLASTICIZING CAPACITY	g/s	97	110
	SCREW SPEED	rpm	400
CLAMPING UNIT	CLAMPING FORCE	KN	5200
	MOVING MOULD-PLATE STROKE	mm	780
	MAX. MOULD HEIGHT	mm	800
	MIN. MOULD HEIGHT	mm	320
	SPACE BWTWEEN TIE-BARS (W*H)	mm	820*770
	HYDRAULIC EJECTOR FORCE	KN	181
	HYDRAULIC EJECTOR STROKE	mm	200
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	19
	MOTOR/DRIVING POWER	KW	55+55
	HEATING CAPACITY	KW	28
	MACHINE DIMENSION (L*W*H)	m	7.88*2.02*2.25
	MACHINE WEIGHT	t	22
	OIL TANK CAPACITY	L	1000

---
