22kw Singular Inverter Electric Wire Saw Cutting Machine for Concrete Cutting

Product Description

22kw Singular Inverter Electric Wire Saw Cutting Machine for Concrete Cutting
1. Products Description
1. Zhongli diamond wire saw machine adopts dual inverter + PLC + touch screen electronic control mode.
2. According to the changes of the load, to automatically adjust the walking speed, making the bead rope is always in the best working condition.
3. it can keep the wire tension constant during stone or concrete block cutting.
4. Extension of the front column, to improve the straightness of the block squaring.
5. Unique pulley guiding device, to maximize the utilization of the wire
6. Protection function: wire broken, overload and open phase protection
7. Easy to operate, there is no requirement for the power phase
8. Easy to move
Advantage:
· Stable quality with reasonable price
· Low energy consumption and long life
· ISO certificate
· OEM/ODM
· Strictly raw material source and production quality control ensure stable quality.

2. Technical Parameters

Model	ZL-22FATS			ZL-18FATS
Main motor power	22KW			18KW
Driving wheel dia.	500mm			500mm
Wire length	20-50m			20-40m
Max. wire dia.	11.5mm			11.5mm
Linear speed	0-26m/s			0-26m/s
Walking speed of machine	0-144m/h(slow:36cm/min; fast:240cm/min)
Total power	22.5KW			19KW
Walking motor power	0.2KW
Rail length	1550mm
Main motor RPM	0-980r/min
Allowed working temperature	-15°C,+40°C
Voltage	Three-phase, AC380±10%,50HZ,
Weight	450KG			420KG
Dimension L*W*H	2400*1000*1200mm			2400*1000*1200mm

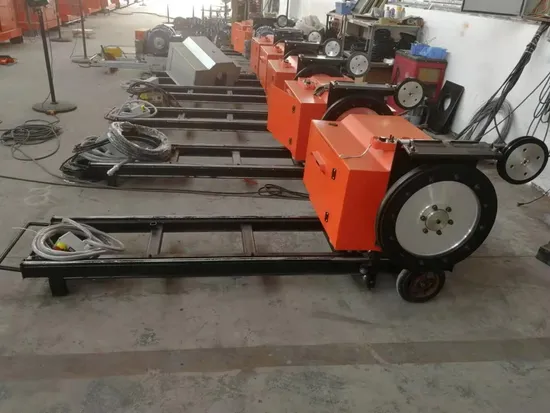

3. Products Details
4. Application
The machine can be used for cutting bridge, support beam of building and for splitting small stone blocks.
5. Diamond Wire Saw for concrete cutting technincal parameters

For reinforced concrete
Item	Diameter	Coating	Beads number	Cutting material	Line speed	Cutting speed	Lifespan
WCR115 WCR110 WCR105	Φ11.5mm Φ11.0mm Φ10.5mm	Rubber+Spring	40/meter	Normally reinforced	22-25m/s	2-4.5 m2/h	2-6m2/m
				Strengthening reinforced	20-22m/s	1.5-3.5 m2/h	2-4m2/m
				Steels or metal structure	18-20m/s	0.5-2m2/h	1-3m2/m
Other sizes are also available

Clients feedback of concrete wire saw performance

Dia. (mm)	Machine power (KW)	Cutting area	Cutting speed (m2/h)	Wire life (m2/m)	Country
10.5	18	15m2, steel pipe inside	3	2.5	Finland
11.5	18	1.5m2, 25mm thickness steel inside	2.4	2.6	Japan
11.5	18	1.2m2, 32mm thickness steel inside	1.2	1.4	Thailand

6. Packing details
First, wrap the machine with plastic film.
Second, pack the machine into the wooden cases.
Finally, fix the wooden cases on pallet for easy transport by sea.
7. Shipping
1. Delivery time
For sample, 7-15 working days once payment confirmed.
For bulk, depends on the quantity.
2. Shipping Method
For sample order which is less 45kgs, Express will be a better choice. (DHL, UPS, FedEX, TNT, etc.)
For normal order which is 45-100kgs, Air Freight will be a better choice.
For normal order which is above 100kgs, Sea Freight will be a better choice.
8. FAQ:
Q1:Are you a factory or trading company?
A1:We are factory. If you have time, welcome to visit our factory.
Q2. How is your quality?
A2. We have a very seriously control system. We guarantee the high performance of our products.
Q3. If we need technical support, can you offer us?
A3. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.
Q4. How can we be your agent in our country?
A4. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.
Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best choice; for bulk order, sea way is best but take longer time; for urgent orders, we suggest shipment by air or by express.
Q7. When you can reply to me when I send you an Inquiry?
A7. We promise to reply within 24 hours on receipt of your inquiry on working days.
