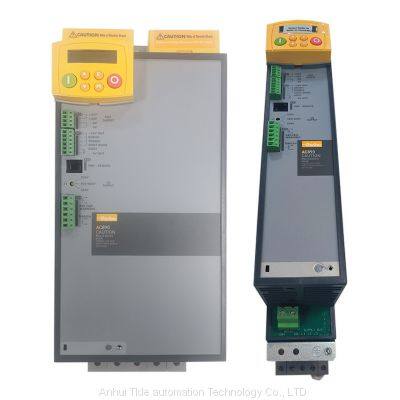

The AC890 is a compact, modular systems AC drive engineered to control speed and position of open-loop and closed-loop, single- or multi-motor AC induction or servo motor applications, up to 500HP.
Brand
| Parker
| Product Type
| AC Drive
|
Drive Axis Type
| Single Axis TechnologyMulti Axis Technology
| Product Series
| AC890
|
Input Voltage
| 3*230VAC3*380-480VAC
3*500-690VAC
320-705VDC(Common Bus)
| Output Power
| 0.75 - 1500 HP
|
Compatible Motor Type
| Brushless ServoFrameless Servo
Induction
Spindle
Torque
PMAC
| Compatible Feedback Device
| Resolver Incremental Encoder
|
Modes of Control
| V/HzSensorless Vector
Closed Loop Vector
Active Front End
Speed Control of Permanent
Magner Motor
| Communication Interface
| RS232 / RS485CANopen
ControlNet
DeviceNet
Profibus
Profinet
Ethernet TCP/IP
|
Operating Temperature
| 0-45 °C for Frames B-F / derateup to max 50 °C 0-40 °C for Frames G-K / derate up to max50°C, 32-113F for Frames B-F(derate up to
122F max)32-104F for Frames G-K (derateup to 122F max)°F
| Operating Altitude
| Up to 1000m ASL (derate >1000m)
|
Overload Rating
| Heavy Duty Rating (ConstantTorgue) : 150% for 60sNormal Duty Rating (VariableTorque) : 110% for 60sServo Mode Rating (Frames BD) :
200% for 4sServo Mode Rating (Frames E J): 150% for 60s
| Specifications Met
| CE(EMC & LVD) UL Listed cUl listed
|
