Autobag Pre-Opened Bag in Roll Machine for Autobag Bagging Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
Pre-600
Voltage
1/2/3 Phase, 220V/380V, 50/60 Hz
Seals Mode
Bottom Sealing
Speed
Medium
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Single
Machine Type
Bag Forming Machine
Type
Pre-Open Bag Machine
Power
5.5kw
Weight
800kgs
Certification
CE
Max.Width of Material
500mm
Max.Cutting Length
700
Max.Diameter of Roll
500mm
Transport Package
Wooden Box
Specification
4200*1500*1500mm
Trademark
SNDA, OEM
Origin
Wenzhou, China
HS Code
84778000
Production Capacity
20 Sets Per Month

Product Description

Performance And Characterlstics:

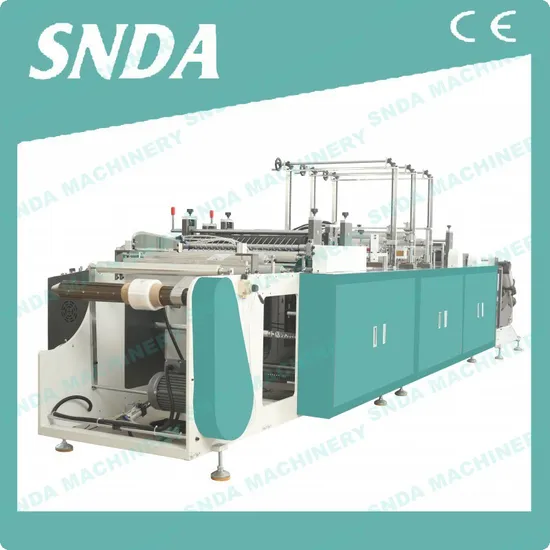

This pre-open perforated bag making machine/bag-on-roll making machine is our newest design machine,it has much functions as photoelectric automatic tracking microcomputer length setting,highlimit stopping,automatic counting,automatic alarm on reaching the set value,high compensation accuracy with such characteristics as neat bags,little error and high automatic of whole machine,so it is a kind of ideal equipment for producing pre-open bag to match the line of autobag,titan, sharp packing machine.
Technical Variables:
Model PRE-600
Max.width of Bag-making 500mm
Max.length of Bag-making 700mm
Max diameter of unwinding(can be special design) 500mm
Max diameter of rewinding(can be special design) 300mm
Max.speed of Bag-making 30-150 pcs/min
Paper core of unwinding(can be special design) 3inch (76mm)
Paper core of rewinding(can be special design) 3inch (76mm)
Thickness of film(single layer) 0.008-0.15mm
Electric Power 5.5 kw
Overall Dimensions 5500*1500*1500mm
Weight 2000kgs
