PPGL Galvalume Steel Coil Color Coated Prepainted Metal Roofing Steel Sheet Coil

Product Description

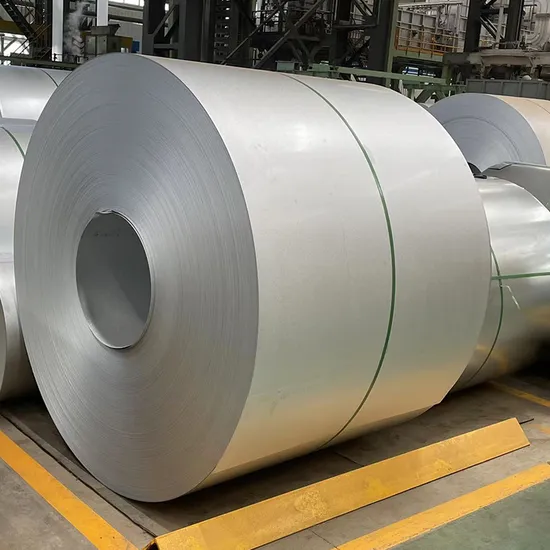

GALVALUME STEEL COIL Product Parameters

55% AL Galvalume steel coils
Base material	CR Full hard steel coils
Standards	GB, ASTM, EN, JIS
Grade	DX51D, DX52D, DX53D, DX54D
	S250GD, S280GS, S300GD, S320GD, S350GD, S550GD
	CS type A, CS type B, FS, DS, EDDS
	Grade 33, Grade37, Grade40, Grade50, Grade80
	SGCC, SGCH, SGC340, SGC400, SGC440, SGC570
Thickness	0.25-1.2mm
Width	720-1250mm
Zinc coating	AZ30-AZ150 g/m2
Spangle	Regular spangle
Surface treatment	Chromated, Oiled, AFP (anti-finger print)
Coil weight	3-25MT
Coil ID	508 or 610mm

Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zinc-alu steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.

Product Description
Advantages The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good. Main Features 1.Corrosion resistance:When zinc is abraded, aluminum forms a dense layer of alumina that prevents further corrosion of the corrosive material inside.
2.Heat resistance:Aluminum zinc alloy steel has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius. 3.Thermal reflexes:The heat reflectivity of Al Zn steel plate is very high, which is two times that of galvanized steel sheet.
4.Economical Efficiency:Since the density of 55% AL-Zn is smaller than the density of Zn, the aluminum-zinc-plated steel sheet is more than 3% larger than the area of the plated steel sheet when the weight is the same and the thickness of the gold-plated layer is the same.
We can also produce the Pre-painted galvalume steel coil as customer needs.
Product Application
Packing and Shipping
Quality Control
Company Profile
About us
Jinan Zunkai Group founded in 2002, with five branch companies and is well-funded. Our annual sales nearly one billion, about 300,000 tons steel. Our company is located in Jinan City, Shandong Province. We entered into a strategic partnership with Bao Steel, Laiwu Steel, Rizhao Steel, Handan Steel, Anyang Steel, Maanshan Steel and other domestic large steel companies. Zunkai is the largest steel agent in Shandong Province, we also have ourselves steel process factory with 100000 Square meter for steel laser cutting, surface treatment and other further processing , and our stock always more than 20,000 tons.
Zunkai Group mainly engaged in : PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc . Our good quality and reliable service will be your best trusted partner. Sincerely wish to building long and regular business with you forever!!!
Our Cooperation
Q1 : What is your payment terms?
A1 : 30% deposit & balance against B/L or L/C at sight.

Q2 : What is your delivery time & loading port?
A2 : Generally it is within 7 days after received advance payment or L/C. If the goods is not in stock , according to the quantity
it is within 15 days. Loading port:QINGDAO or TIANJIN.
Q3 : Do you have MOQ request ? Can offer free samples?
A3 : Our MOQ is usually ONE ton. Free samples is ok but need pay thecourier charge. Charge can be deduct in future orders.
Q4 : What are your company's main products?
A4 : Our main products are Aluminum products, Steel products, Stainless steel products, Galvanized steel products, Colorized steel Coil, etc.
Q5 : Are you a factory or trading company?
A5 : We have both factory and trading company,own branch factory and warehouse in Shandong Province to provide you nice
goods with best price and good quality.

---
