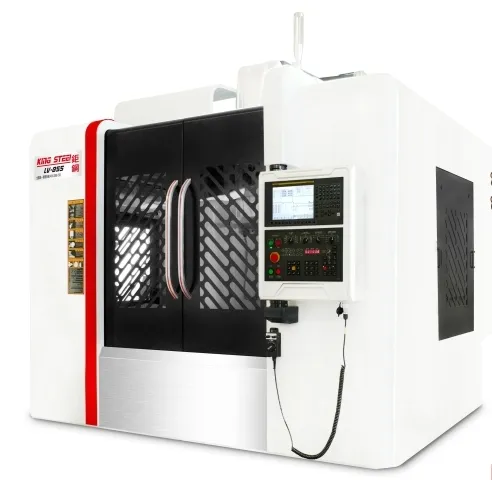

Taiwan Quality Fanuc Vertical Machining Center for Sell with CE Certification

Product Description

Product Description
The processes of artificial annealing-vibration-artificial aging-nature aging processes(6 months) can keep the casting iron parts long time precision without deformation.
High rigid structure can bear the inertia produced by high G movement.
High speed mute screw and mute linear rail reduce thermal displacement and improve precision.
Great performance of spindle makes the high speed cutting efficiently.
X/Y/Z 48m/min rapid feeding movement can save 40% non-processing time.
Product Parameters

Technical Data
Model	LV-855A CNC machining center	FANUC-0i-MF PLUS(5)β
Worktable	Table Size	1000*550mm
	T-slot (Width x No. x Distance)	18mmx5pcsx90mm
	Max. loading weight	600kgs
Travel	X axis travel	850mm
	Y axis travel	550mm
	Z axis travel	550mm
	Spindle nose to worktable	105-655mm
Guide ways	X linear wide/numbers/blocks	35mm roller/2pcs/4pcs P grade
	Y linear wide/numbers/blocks	35mm roller/2pcs/4pcs P grade
	Z linear wide/numbers/blocks	35mm roller/2pcs/4pcs P grade
Screws	X/Y/Z screw specific	4016/4016/4016 C3 grade
Spindle	Belt spindle speed	10000rpm
	Spindle motor power	7.5/11KW
	Spindle taper	BT40
	No.of front bearings	NSK 4 pcs
	No.of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	1.8/1.8/3KW
Feed	X/Y/Z feed speeds	48/48/48m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
	Max tool dia. (Full)	80mm
	Max tool dia. (Empty)	150mm
	Max.tool length	300mm
	Max. tool weight	8kgs
	T-T time	1.8sec
Working conditions	Electricity	3Ф380V,50HZ,20KVA
Dimension& Weight	Approx. outer dimensions	2600x2550x2650mm
	Approx. weight	5000kgs

Detailed Photos
Our Advantages
Precision assembling is the most important for CNC machines. Except the excellent components and casted irons, the carefully correcting are also very important.To ensure the precision of the machine, KINGSTEEL insists on completing all the assembling by ourselves, monitoring every detail and each step, and refining the assembly.Each procedure has been strictly tested and recorded before proceeding to the next one.

Certifications

After Sales Service
1.Warranty: 12months for mechanical parts and 24 month for NC controller since customer receive the machine.
2.Installs debugs the personnel and days: 1-2 people in two days, depends on the customer's needs.
3.Engineer Travel, Installation and commissioning expenses: On buyer.
FAQ
Q: Why Choose JUGANG MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and over 30 years of export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12months for mechanical parts and 24 month for NC controller since customer receive the machine.;
7 . Overseas engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set.
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: 12months for mechanical parts and 24 month for NC controller since customer receive the machine.

---
