CNC Grinding Machine for Grinding The Pellet Ring Dies Max Od1500mm

Product Description

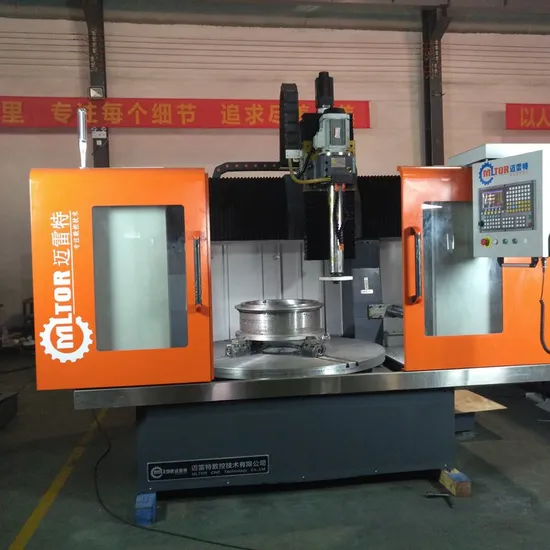

High precision CNC automatic ring die vertical grinding machine
It's suitable for new ring die and flat die mold fine grinding.Used ring die repairing.
Technical description
1.The industry preferred,original models.
2.Wheel angle ±8 degrees adjustable.
3.Safety,simple,user-friendly operation.
4.Ring-die grinding can meet more than 80% of the market needs.
5.Parameter input,automatic modification,only need to choose the programming,it can efficient grinding.
6.Composite processing function:can be done within the circle,the outer circle,end face grinding.
7.Ring die dedicated system MLT-T208i with mature hardware and software systems,use-friendly,intutive interface,stable performance,no programming,the relevant parameter of the ring die through the CNC system interface can be filled.
8.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description

Maximal outer diameter of ring die	15000mm
Minimum inner diameter of ring die	350mm
Maximal width of ring die	550mm
Maximal weight of ring die	1200kg
Inside of ring die grinding	support
Outside of ring die grinding	support
End fave of ring die grinding	support
Grinding wheel dressing	automatic/manual operation

Grinding wheel type	plate-wheel/bowl wheel
Cooling system	circulating water cooling
Grinding wheel spindle motor	4.0kw
Grinding wheel speed range	1000-4000r/min
Working table motor	5.5kw
Working table speed	1-60r/min
The maximal weight of table	800kg
Working table diameter	1200mm

NC control system	MLT-T208i
Number of control shaft	X/Z axis,two axises linkage
Servo drive	AC servo driver and motor
Electric cabinet air conditioning	DLW5
Major electrical component	Schneider
The inverter	Mitsubishi
Terminal	Phoenix
Power supply voltage and frequency	AC380 3P 50-60HZ

The rated power of the whole machine	11kw
Floor space	2940mmx2460mmx2920mm
Host weight	8500kg

---
