Automatic Best Electric Small Moulding/Concrete Solid Block Interlocking Paver Making/Cement Hollow Brick Mold Plant Manufacturing/Production Machine Price List

Product Description

Company Information
Hawen block making machines are for the manufacture of concrete bricks, blocks and paving. The machines are manufactured to heavy-duty standards to ensure long life, high performance and the manufacture of quality products.
Hawen Machinery is the leading manufacturer of concrete machinery and plant. With quality and service, Hawen Machinery are not only distributed and found in use all around China, but also in different countries wordwide.
Factory workshop overview
Brief Introduction

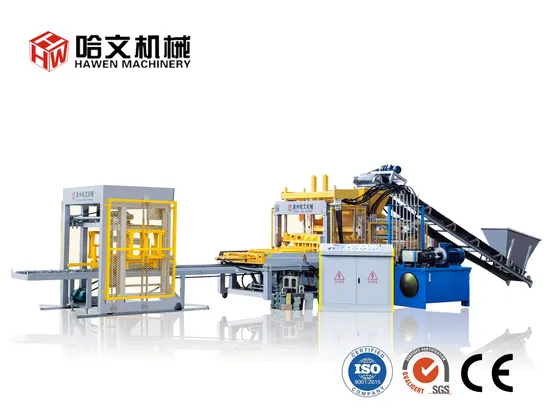

Hawen QT6-15 Retaining Concrete block making machine,using German SIEMENS PLC Control system and SIMENS Touch Panel,SIEMENS vibration motor,with powerful vibration and high automation. Customer can make various types of concrete products such as hollow block,interlocking paver,curb stone ,solid brick,solid block by changing the moulds.
Feature of QT6-15 Concrete paver/block making machine: With Frequency conversion technology,the vibration frequency can be changed according to different raw material and different types of concrete products. With Frequency inverter, vibration speed can be increased or decreased in short time,which greatly save the cycle time thus to increase the production capacity With Double proportional valve in hydraulic tank,the flow and pressure can be setted from the touch panel of block making machine,easy for operation. All the production parameters can be set from touch panel,the PLC software can be upgraded or amended to maximize the production output. Mould can be changed quickly if customer wanna make different types of products.

The whole production line including:PL800-2 Concrete batching machine, JS500 Concrete Mixer, Main forming machine, Automatic Block Stacker.
An auto. Face mix device can be added to to make top-color paving stone.
Raw material
Crushed stone, sand, cement, fly ash, cinder, slag, gravel, and other industrial wastes etc..
Technical specification:

Pallet size	mm	980×680×20
Cycle time	S	15-23
Rate Pressure	Mpa	21
Vibration force	KN	68
Power	KW	26.7
Weight	T	7.2
Vibration frequency	r/min	3800-4500
Dimension	mm	9450×3300×2700
Raw Materials	Crushed stone, sand, cement, fly ash, cinder, slag, gravel, and other industrial wastes.
Applied Products	Hollow blocks, solid block,soild brick, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass paver, slope blocks, interlocking paver, etc.

Capacity of QT6-15 Automatic block making machine
Processing equipment in the workshop
Application of QT6-15 Block Making Machine at site

Container loading in workshp for customers overseas
QT6-15 block making plant on site
QT6-15 for hollow block 390x190x190mm: 6pcs/drop
QT6-15 for rectangular paver 200x100x60mm:24pcs/drop
Application:
Our Service
Pre-sale service support
According to every customer's demand and budget, we offer the professional factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order
On-sale service supportAssist clients to finish the factory planning,like foundation construction, power preparation,water pool preparation,etc. Before delivery equipment to customers, complete debugging and checking,our machine will do hot testing in workshop with material. Provide a full instruction manual for the block making machine. Provide technical guidance for the installation , including installation advice and electrical connection.
After-sale service supportSend technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.

---
