US$30,000.00-99,000.00
|
1 Set
(MOQ)
|
Basic Info.
Product Type
Granulating Extruder
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Usage
FTTH Drop Cable Extrusion Machine
Extrusion Material
PVC/LSZH
Structure Speed
Max.150m/Min
Service
Technical Support, Training
Transport Package
Plastic Film+Wooden Package
Production Capacity
4set Per Month
Packaging & Delivery
Package Size
210.00cm * 150.00cm * 165.00cm
Package Gross Weight
500.000kg
Product Description

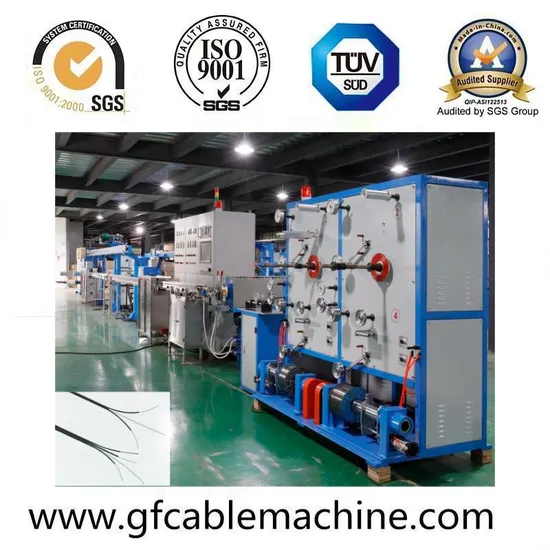

FTTH Optical Cable Machinery and Equipment
1,machine application:
FTTH drop cable machine mainly applied in the production of tight buffered fiber,soft optical fiber cable,FTTH terminal optical fiber cable(drop cable).The extruded sheath possesses the features of even diameter,smooth,fast speed, and low excess loss for optical fiber.
2,Technical parameters of FTTH drop cable production line :
| Extruder type | 50×25 Extruder |
| extrusion material | LSZH,PVC |
| structure speed | Max.150m/min |
| production speed | Max.100m/min(LSZH);120m/min(PVC) for 2.0*3.0mm FTTH |
| No of optical fiber pay-off reels | 2 or 4 reels |
| Specification of optical fiber pay-off reels | 25km and 50km standard optical fiber reels |
| Pay-off tension of optical fiber | 0.4N-1.5N |
| Heads no of reinforcement pay-off rack | 2 heads |
| Specification of reinforcement pay-off reels | PN400 reels and ø254×ø116×ø180×ø32 reels |
| reinforcement Specification | ø0.4-ø1.0 |
| Pay-off tension of reinforcement | 5N-20N |
| Take-up tension | 5-15N |
| Take-up reels Specification | PN400 reel and PN600 reel(central shaft hole diameter ø 56) |
| excess loss after extrusion | 1550nm<=0.2dB/km(single mold optical fiber) |
| Center height of machine | 1000mm from background |
3. Machine main electric brand
Motor: Dongguan Motor
Transducer: shenzhen Inovance transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON brands,etc.
Production Process:
Our main products:
What we can do for you ?
Delivery and packing
>>
