Egg Tray Production Injection Molding Machine Hxm730-II

Product Description

1.Picture

MODEL:HXM730-II
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	90	95	100	105
	SCREW L/D RATIO	L/D	23	22	21	20
	INJECTION CAPACITY IN THEORY150130112882	cm3	2861	3188	3534	3894
	INJECTION WEIGHT(PS)	g	2603	3901	3216	3534
		oz	91.8	102.3	113.4	124.9
	INJECTION PRESSURE	MPa	213	191	173	157
	INJECTION RATE	g/s	546	608	674	743
	PLASTICIZING CAPACITY	g/s	76	85	90	98
	SCREW SPEED	rpm	110
CLAMPING UNIT	CLAMPING FORCE	KN	7300
	MOVING MOULD-PLATE STROKE	mm	950
	MAX. MOULD HEIGHT	mm	960
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W×H)	mm	1000*950
	HYDRAULIC EJECTOR FORCE	kN	227
	HYDRAULIC EJECTOR STROKE	mm	280
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	38+38
	HEATING CAPACITY	KW	48.8
	MACHINE DIMENSION (L×W×H)	m	11.6*2.28*2.74
	MACHINE WEIGHT	t	34
	OIL TANK CAPACITY	L	1315

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.

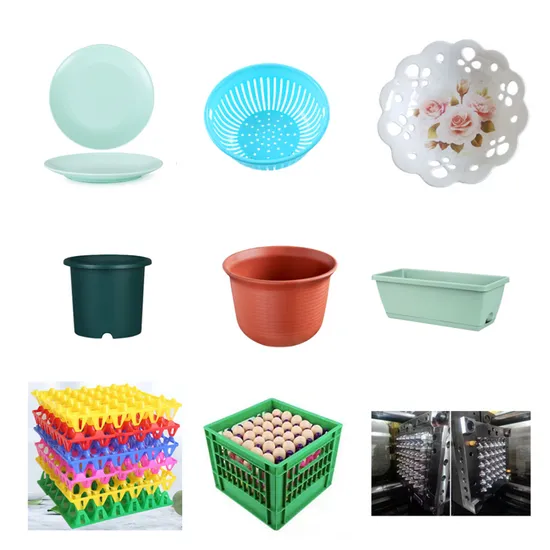

2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia

---
