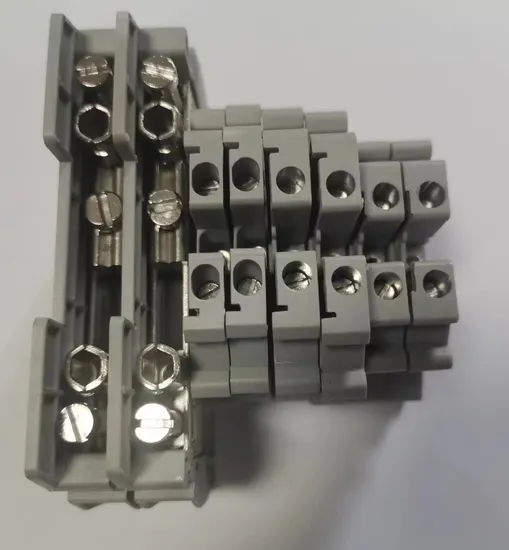

Screw Connect Clamp Wire Distribution Terminal Block on DIN Rail Mount Copper Busbar Through Panel Terminal Strip Block
US$0.50-3.00
1,000 Pieces
(MOQ)
Basic Info.
Model NO.
AKJ-4
Connection Mode
In-Line Connector
Shape
Rectangle
Contact Termination Form
Screws Fixed
Type
Filter Electric Connector
Character
Environmental Protection
Production Process
Injection Molding
Interface Type
AC/DC
Brand
OEM ODM
Insulation Material
PA66
Temperatures
up to 200
Flame Retardant Grade
V0
Average
Average of 2.8%
Number of Contacts
1-10
Transport Package
Box
Specification
AKJ
Trademark
OEM, ODM
Origin
China
Production Capacity
800, 000 PCS/Per Month
Product Description
Product Description AKJ Series connectors using lifting frame screw crimping structure,the rated cross-section 10mm2 series of terminals,the lifting frame clamp way,when tightening the screws,the top of the screw in the flow of copper and the pressure line the frame moves upward gradually to clamp the wire. As the torgue of the tightening screw increaseases along the flow guide bar,the gap at the upper part of the pressure wire frame will undergo elastic deformation after being subjected to the foce .and the screw is clamped so that the pressure wire frame and the screw automatic step between the elastic self-locking.played a reliable wiring to prevent the screw loose effect
