BOLI MESH2025 WIRE MESH Stainless steel 316 316L Plain Weave Woven/ 304 Twill Weave/ Stainless Steel Wire Mesh Plain/ Dutch Weave tainless Steel mesh cloth For oil filter air filter making

Product Details

Product Description

Product Description

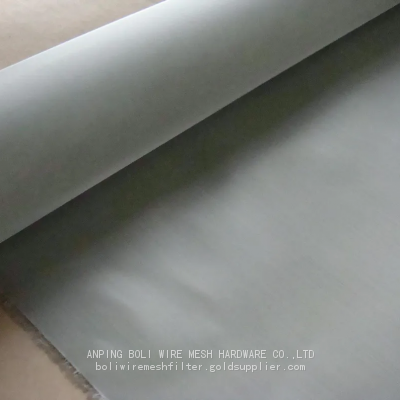

AISI 304 316 316L Plain Weave mesh
BOLI Supply Plain and Twill Weave Woven Wire Cloth
Weave Type: Plain Weave or Twill Weave
Materials Available: Stainless Steel 201,302,304,304L,316, 316L,etc..
Other Materials: Copper and Brass, Nickel, Monel, Monel, Plain Carbon Steel.
Mesh Size: from 2 mesh to 635 mesh
Width: Normally is 1 m,max width is 2.0m, different width to be negotiated
Length:30 meters per roll, other length to be negotiated
Color: original color
Finish: None finish, Powder coated, Painted
Flexibility: Easy cut with scissors and easily to be bended
Package: in rolls and wrapped in brown paper then plastic bag or woven bag, then in wooden case.
OEM available: We accept customized product including the package design.
Applications: Mostly for filtetration, Sieving and Sizing. Also used as decoration mesh.
Stainless steel mesh as one of my company's leading products, over the years, we have been unremitingly introduced the international advanced weaving equipment and weaving technology, and strive to improve the quality of products. As one of the largest industrial metal mesh manufacturers in China, our goal is to continue to forge ahead and lead the world.
It is mainly used for screening and filtration under acid and alkali environmental conditions. It is used for mud mesh in petroleum industry, chemical fiber industry as screening mesh, electroplating industry as pickling mesh and gas, liquid filtration and other media separation.
.
Plain Weave Stainless Steel Woven Wire Mesh

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.

Twill weave

Mesh/inch	Diameter(mm)	Aperture(mm)	-	Mesh/inch	Diameter(mm)	Aperture(mm)
100mesh	0.14	0.114		325mesh	0.035	0.043
120mesh	0.1	0.111		350mesh	0.032	0.0405
150mesh	0.09	0.079		400mesh	0.03	0.0335
180mesh	0.07	0.071		450mesh	0.026	0.0304
200mesh	0.06	0.067		500 mesh	0.025	0.0258
250mesh	0.045	0.0566		600 mesh	0.018	0.0243
300mesh	0.04	0.0446		635mesh	0.018	0.022

Plain Dutch Weave

Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)	-	Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)
8 X 62	0.63mm X 0.45mm	300		45 X 250	0.16mm X 0.112mm	56
10 X 79	0.50mm X 0.355mm	250		50 X 250	0.14mm X 0.11mm	53
12 X 64	0.58mm X 0.40mm	280		55.5 X 280	0.14mm X 0.10mm	50
14 X 88	0.40mm X 0.30mm	180		65 X 330	0.11mm X 0.08mm	36
19 X 140	0.315mm X 0.20mm	140		70 X 350	0.11mm X 0.08mm	35
20 X 300	0.35mm X 0.20mm	-		70 X 385	0.11mm X 0.07mm	32
24 X 110	0.355mm X 0.25mm	120		78 X 700	0.11mm X 0.08mm	30
25 X 140	0.28mm X 0.20mm	100		80 X 400	0.10mm X 0.065mm	40
30 X 150	0.25mm X 0.18mm	80		80 X 600	0.10mm X 0.06mm	-
35 X 175	0.224mm X 0.16mm	71		80 X 800	0.15mm X 0.04mm	-
40 X 200	0.20mm X 0.14mm	60		81 X 780	0.10mm X 0.07mm	30
				90 X 550	0.12mm X 0.05	-

Twill Dutch weave

Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)	-	Mesh/inch Wrap*weft	Wire diameter Wrap*weft(mm)	Aperture (um)
91 X 787	0.10mm X 0.07	25		200 X 600	0.071mm X 0.06	-
101 X 900	0.10mm X 0.063	20		200 X 800	0.071mm X 0.06	-
120 X 400	0.10mm X 0.075	-		200 X 1400	0.071mm X 0.04	12
127 X 1100	0.07mm X 0.05	17		202 X 1760	0.05mm X 0.032	10
160 X 1500	0.063mm X 0.04	15		216 X 1860	0.045mm X 0.030	9
165 X 400	0.071mm X 0.06	-		254 X 2000	0.04mm X 0.028	8
165 X 600	0.071mm X 0.05	-		285 X 2235	0.036mm X 0.025	7
165 X 800	0.071mm X 0.05	25		312 X 2100	0.035mm X 0.025	-
165 X 1100	0.071mm X 0.045	-		318 X 2235	0.036mm X 0.025	-
165 X 1400	0.071mm X 0.04	16		325 X 2300	0.035mm X 0.025	5
174 X 1700	0.063mm X 0.032	13		400 X 3100	0.035mm X 0.019	3

If you did not find the mesh you want, please contact us any time.
Company Profile
ANPING BOLI WIRE MESH HARDWARE CO.,LTD
ANPING BOLI WIRE MESH HARDWARE CO.,LTD was an old established factory which built in the year of 1984. It mainly in the line of producing and selling wire mesh products. Our company has advanced equipment, excellent technology, strict inspection for the wire mesh products and can provide outstanding quality and reasonable price, which help us to win the trust of our customers. Our products have been sold to five Continents, over 30 countries, including USA, Canada, Australia, Italy, UK, France, etc. We sincerely hope to establish good and long business relationship with all friends. May our cooperation bring you happiness and benefit.ANPING BOLI WIRE MESH HARDWARE CO.,LTDspecialized in products of stainless steel wire&wire mesh,Stainless steel strainer,strainer basket,stainless steel filter,SuctionStrainer,Wire Cloth & Wire Mesh Discs,Stainless Steel WovenWire Cloth,Extruder Screens Filter, Welded Packs,RimedPacks,Cylinders Filters,Sintered Filters Elements,CandleFilters, and Architectural Mesh, Expanded Metal, PerforatedMetal, We offer a variety of wire mesh products inWoven/Welded/Crimped and Dutch form, Expanded,
