Industrial Oil Separator Coconut Oil Extraction Tubular Centrifuge

Product Description

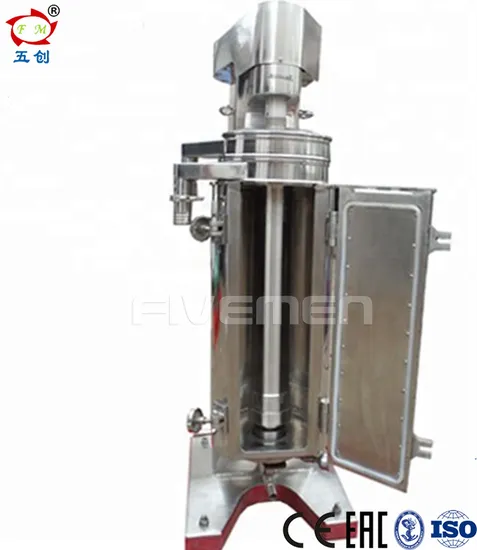

Product Description Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um, which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.
Working Principle GQ model is two phase tubular centrifuge.
GF model is three phase tubular centrifuge.


The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which can separate the water, solid from the oil.

GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.
The Application
The tubular centrifuge is suitable for solid-liquid separation with small concentration, high viscosity, fine solid phase particles and small difference in solid-liquid gravity. It is mainly used in biomedicine, traditional Chinese medicine preparation, fermentation bacteria liquid separation, health food, beverage, animal and plant. Protein pectin extraction separation, liquid-solid separation of food health products, plant pigments, fine chemicals,ink and other industries. It is an ideal equipment for dynamic continuous separation by centrifugation. The separation factor of high-speed tubular centrifuge is 15900~16700xg, and the diameter of separated small particles is 0.5μm. Therefore, the difference in weight between liquid and solid is small, the solid particle size is fine, the content is low, the medium is corrosive and the materials are extracted and concentrated. Clarification is more applicable.Blood separation, ink separation, Natural pigment separation, Chemical separation, medicine separation, Escherichia coli separation, Biological vaccine separation, Microalgae separation
Technical Parameters

	GF105/GQ105	GF150/GQ150
Drum speed	16300 r/min	14000 r/min
Max centrifugal force	15750 R.C.F	16900
Drum inner diameter	φ105 mm	Φ145 mm
Drum effective length	730 mm	770 mm
Solid volume in drum	6 L	8-12L
Stuff inlet pressure	<0.1Mpa	<0.1Mpa
Output (water flux)	1500 L/H	2500 L/H
Motor power	3KW	3 KW
Specification	760×450×1680 mm	890*580*1670 mm
Weight	500kg	700kg

Application Occasion

Our Service
Pre-Service
1. 24 hours onlinne consult and service
2. Introduce the details of products to the customers, answer the question raised by customer at firstly;
3. Providing the operation , installation and working video for customers.
4. Providing the different solutions for choice according to the needs and requirements of customers;

Sale Service
1. Ensure new product with high quality before delivery;
2.Packing according to the export requirements and shiping carefully;
3. Provide full set of documents as customer's requirements.
4. Providing one year sparing parts for you for free.
5. Delivery on time
After-sale Service
1. Help to install and debug the equipment, Our technicians could be dispatched for
overseas service.
2. Provide 24 hours techincal support by e-mail or phone;
3. Abundant spare parts in stock are available to provide.
4. Help customers slove any other questions about products or other aspect;
5. Your workers could get trained both in our factory and yours.

Service Commitment
1. We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
