Wood Curve Edge Banding Machine Gluing Buffing Woodworking Machinery

Product Description

Product Parameters

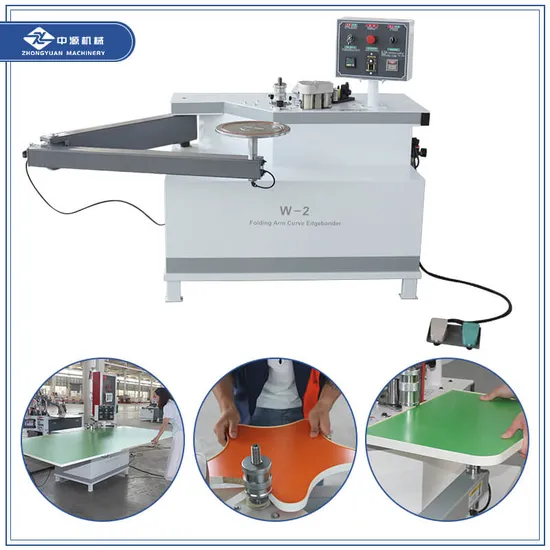

W Stacked Arm Curve Edge Banding Machine : 1.Stacked arm design and rotating structure are more flexible and efficient than table top curve banding, especially when banding large curved edges, its advantages are better reflected.
2.Glue application: Grid-shaped glue application roller, even glue application, firm adhesion, large-capacity glue pot.
3.Fitting wheel: Add 0.5mm according to the width of the edge banding strip, and adjust left and right to prevent the edge banding strip from deflecting up and down.
4.Positioning of the small white shaft: Keep the suction cup parallel to the small white shaft. Remove the small white shaft and the suction cup can be directly fixed, making it easy to band the small plates.
5.Stepless speed adjustment: Used to adjust the button to set it arbitrarily within the maximum value, accurate and shockproof, protect the power supply, and prevent misoperation.
6.Control panel: using Delixi electrical components, digital display temperature controller, timer belt break, electronic speed regulator.
7.Dual cylinder control: control knife and tape feeding, high-quality knife, fast cutting without burrs.
8.Double pedals: The left pedal controls the suction force of the suction cup, and the right pedal controls the edge banding, tape feeding and breaking.
9.Height-limiting column: The height is adjustable to prevent the edge banding strip from moving up and down.
What's new in W3:
1.Automatic glue removal, the laminating wheel is not easy to glue.
2.With the auxiliary pressing wheel, the edge banding strip is pressed twice to increase the bonding firmness.
3.Hot air assists to increase the adhesion between the edge strip and the board.

Model	W1	W2	W3
Board size	round 1.6m, square 1.5*1.2m, L-shaped 1.2*1.2m Maximum load capacity 40kg	round 2.4m, square 1.2*2.3m, L-shaped 1.2*1.6m Maximum load capacity 50kg	Round 2.4m Square 1.2*2.4m, L-shaped 1.2*1.6m Maximum load capacity 50kg
Diameter ofsuction cup	200 mm	300 mm	300 mm
Auxiliarypressure roller	-	-	√
Automatic cleaning	-	-	√
Hot air device	-	-	√
Total power	1400w	1400w	3400w
Edge banding speed	0-18cm/s	0-18cm/s	0-18cm/s
Glue pot capacity	1200ml	1200ml	1200ml
Length ofstacking arm	1320 (with 200mm suction cup)	1860 (with 300mm suction cup)	1860 (with 300mm suction cup)
Net weight	88KG	152KG	157KG
Machine size	1420*1400*1210mm	1960*1700*1220mm	1960*1700*1250mm

Detailed Photos

Product Application

Company Profile

Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
