0.6/1kv 450/750V 3 4 10 12 21 24 Core 0.75mm2 1.5mm 2.5mm 2.5mm2 Zr Kvvp Zc-Kvvp Kvv Ysly Cu/PVC/PVC Flexible Fire Resistant Power Control Cable

Product Description

Product Description

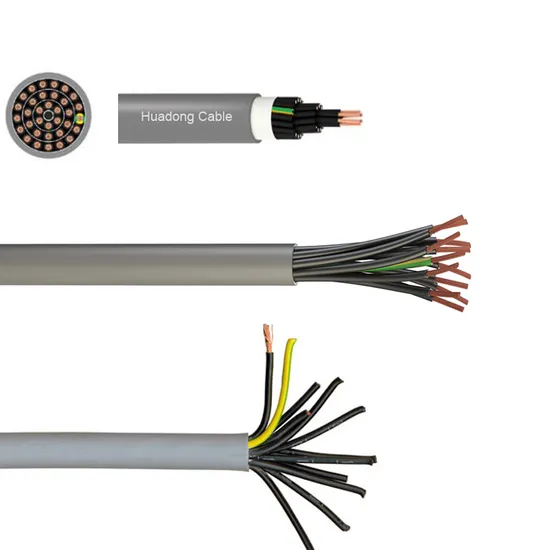

YSLY 0.6/1kV Cable
Application: Flexible power, process control and instrumentation cable for industry, machinery and outdoor environment. The YSLY cable is resistant against most usual chemicals, oil and grease. Voltage Rating Uo/U 0.6/1kV Temperature Rating :Fixed: -20ºC to +70ºC,Installation: -5ºC to +70ºC Minimum Bending Radius Fixed Installation: 4 x overall diameter Flexed Application: 7.5 x overall diameter
Construction: Conductor Class 5 flexible stranded bare copper
Protective Conductor Insulation PVC (Polyvinyl Chloride) Outer Sheath Special PVC-Compound (Polyvinyl Chloride) Technical parameter:

Number of cores and	Copper	Cond.	Overall	Weight
nominal cross section	figure	construction (appr. value)	diameter appr.	appr.
mm2	kg/km	mm	mm	kg/km
2 x 0,5	10,0	16 x 0,21	4,8	35,0
3 x 0,5 *	15,0	16 x 0,21	5,1	41,0
4 x 0,5	20,0	16 x 0,21	5,7	49,0
5 x 0,5	25,0	16 x 0,21	6,2	60,0
7 x 0,5 *	35,0	16 x 0,21	6,7	77,0
10 x 0,5	50,0	16 x 0,21	8,6	114,0
12 x 0,5	60,0	16 x 0,21	8,9	128,0
14 x 0,5	70,0	16 x 0,21	9,5	149,0
16 x 0,5	80,0	16 x 0,21	10,0	164,0
18 x 0,5	90,0	16 x 0,21	10,5	185,0
21 x 0,5	105,0	16 x 0,21	11,7	219,0
25 x 0,5	125,0	16 x 0,21	12,6	256,0
30 x 0,5	150,0	16 x 0,21	13,5	310,0
34 x 0,5	170,0	16 x 0,21	14,3	331,0
40 x 0,5	200,0	16 x 0,21	15,2	409,0
50 x 0,5	250,0	16 x 0,21	17,2	510,0
61 x 0,5	305,0	16 x 0,21	18,5	595,0
2 x 0,75 *	15,0	24 x 0,21	5,3	42,0
3 x 0,75 *	22,5	24 x 0,21	5,5	50,0
4 x 0,75 *	30,0	24 x 0,21	6,2	64,0
5 x 0,75	37,5	24 x 0,21	6,7	77,0
6 x 0,75	43,0	24 x 0,21	7,1	95,0
7 x 0,75 *	52,5	24 x 0,21	7,4	99,0
10 x 0,75	75,0	24 x 0,21	9,4	160,0
12 x 0,75	90,0	24 x 0,21	9,7	165,0
15 x 0,75	112,5	24 x 0,21	10,9	210,0
16 x 0,75	120,0	24 x 0,21	11,5	240,0
18 x 0,75	135,0	24 x 0,21	11,8	240,0
21 x 0,75	157,5	24 x 0,21	12,8	282,0
25 x 0,75	187,5	24 x 0,21	13,9	333,0
34 x 0,75	255,0	24 x 0,21	15,9	435,0
41 x 0,75	307,5	24 x 0,21	17,4	535,0
42 x 0,75	315,0	24 x 0,21	17,8	547,0
50 x 0,75	375,0	24 x 0,21	19,2	643,0
80 x 0,75	600,0	24 x 0,21	23,6	1.005,0
2 x 1 *	20,0	32 x 0,21	5,5	50,0
3 x 1 *	30,0	32 x 0,21	5,9	61,0
4 x 1 *	40,0	32 x 0,21	6,5	75,0
5 x 1 *	50,0	32 x 0,21	7,1	95,0
7 x 1	70,0	32 x 0,21	8,0	114,0
9 x 1	90,0	32 x 0,21	10,0	156,0
10 x 1	100,0	32 x 0,21	10,2	179,0
12 x 1	120,0	32 x 0,21	10,5	211,0
14 x 1	140,0	32 x 0,21	11,0	244,0
16 x 1	160,0	32 x 0,21	11,8	280,0
18 x 1	180,0	32 x 0,21	12,7	303,0
21 x 1	210,0	32 x 0,21	13,7	339,0
25 x 1	250,0	32 x 0,21	14,7	395,0
34 x 1	340,0	32 x 0,21	17,0	536,0
41 x 1	410,0	32 x 0,21	18,9	674,0
42 x 1	420,0	32 x 0,21	19,0	680,0
50 x 1	500,0	32 x 0,21	20,7	823,0
61 x 1	610,0	32 x 0,21	22,2	951,0
2 x 1,5 *	30,0	30 x 0,26	6,3	63,0
3 x 1,5 *	45,0	30 x 0,26	6,6	79,0
4 x 1,5 *	60,0	30 x 0,26	7,3	98,0
5 x 1,5 *	75,0	30 x 0,26	8,1	123,0
6 x 1,5	90,0	30 x 0,26	8,5	155,0
7 x 1,5	105,0	30 x 0,26	8,9	161,0
8 x 1,5	120,0	30 x 0,26	10,6	188,0
9 x 1,5	135,0	30 x 0,26	11,0	220,0
10 x 1,5	150,0	30 x 0,26	11,3	237,0
12 x 1,5	180,0	30 x 0,26	11,8	277,0
14 x 1,5	210,0	30 x 0,26	12,6	319,0
16 x 1,5	240,0	30 x 0,26	13,4	364,0
18 x 1,5	270,0	30 x 0,26	14,2	411,0
21 x 1,5	315,0	30 x 0,26	15,4	476,0
25 x 1,5	375,0	30 x 0,26	16,7	566,0
26 x 1,5	390,0	30 x 0,26	17,3	584,0
32 x 1,5	480,0	30 x 0,26	18,7	717,0
34 x 1,5	510,0	30 x 0,26	19,4	741,0
42 x 1,5	630,0	30 x 0,26	21,6	933,0
50 x 1,5	750,0	30 x 0,26	23,5	1.102,0
61 x 1,5	915,0	30 x 0,26	25,2	1.328,0
2 x 2,5 *	50,0	48 x 0,26	7,6	101,0
3 x 2,5 *	75,0	48 x 0,26	8,2	127,0
4 x 2,5 *	100,0	48 x 0,26	9,0	160,0
5 x 2,5 *	125,0	48 x 0,26	10,0	197,0
7 x 2,5	175,0	48 x 0,26	11,1	256,0
10 x 2,5	250,0	48 x 0,26	14,3	379,0
12 x 2,5	300,0	48 x 0,26	14,8	447,0
16 x 2,5	400,0	48 x 0,26	16,7	603,0
18 x 2,5	450,0	48 x 0,26	17,8	657,0
25 x 2,5	625,0	48 x 0,26	21,1	887,0
34 x 2,5	850,0	48 x 0,26	24,6	1.231,0
50 x 2,5	1,250,0	48 x 0,26	30,0	1.860,0
2 x 4	80,0	56 x 0,31	9,0	138,0
3 x 4 *	120,0	56 x 0,31	9,7	181,0
4 x 4 *	160,0	56 x 0,31	10,7	230,0
5 x 4 *	200,0	56 x 0,31	11,8	287,0
7 x 4	280,0	56 x 0,31	13,1	375,0
2 x 6	120,0	84 x 0,31	10,7	212,0
3 x 6	180,0	84 x 0,31	11,5	272,0
4 x 6 *	240,0	84 x 0,31	12,8	353,0
5 x 6	300,0	84 x 0,31	14,2	431,0
7 x 6	420,0	84 x 0,31	15,7	561,0
4 x 10 *	400,0	80 x 0,41	16,2	593,0
5 x 10 *	500,0	80 x 0,41	18,1	783,0
7 x 10	700,0	80 x 0,41	20,0	1.080,0
4 x 16 *	640,0	128 x 0,41	19,1	897,0
5 x 16 *	800,0	128 x 0,41	21,5	1.117,0
7 x 16	1,120,0	128 x 0,41	23,7	1.768,0
4 x 25 *	1,000,0	200 x 0,41	23,5	1.314,0
5 x 25 *	1,250,0	200 x 0,41	26,2	1.648,0
7 x 25	1,750,0	200 x 0,41	29,0	2.187,0
4 x 35 *	1,400,0	280 x 0,41	26,4	1.807,0
5 x 35 *	1,750,0	280 x 0,41	29,6	2.213,0
4 x 50 **	2,000,0	400 x 0,41	31,8	2.557,0
5 x 50 **	2,500,0	400 x 0,41	35,0	2.920,0
4 x 70 **	2,800,0	350 x 0,51	36,2	3.489,0
5 x 70 **	3,500,0	350 x 0,51	40,0	3.660,0
4 x 95 **	3,800,0	485 x 0,51	42,1	4.501,0
4 x 120 **	4,800,0	580 x 0,51	46,5	5.673,0

Company Profile

Certifications
Packaging & Shipping
FAQ
1.You are manufacturer or trader ? We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china. 2.How can I get the quotation of the products ? Pls send inquiry to us,we will reply you within 12 hours. 3.What does your company do regarding quality control? 1) All raw materials we selected are the highest quality. 2) Professional and skillful workers care every details in handling the producing. 3) Quality control department is specially responsible for quality checking in each process. 4.Do you provide OEM project service? Yes,OEM & ODM order is warmly welcomed. Our technical engineers can give you the professional suggestions. 5.Can I get the sample? Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.

---
