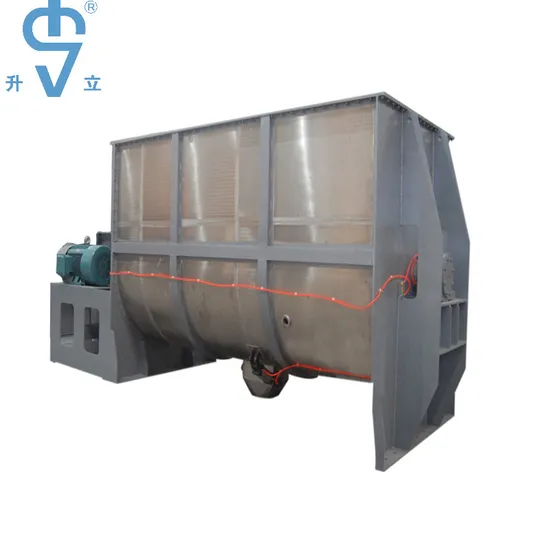

Ribbon Mixer Machine for Powder

Product Description

Ribbon Mixer:
1. Working principles:
In the U-shaped container, there are positive and negative ribbons. Special proportion of the two ribbons can be rectified with the kind of material, quantity and the proportion of body. This Mixer has good effect on mixing viscosity or cohesion powder.
2. Application:
Powder-Powder , Powder-Grain , Powder-Liquid , Grain-Grain etc.
3. Options:
(1) Motor: Ordinary motor , Explosion-proof motor , Frequency conversion motor.
(2) Decelerator: Xseries gear decelerator , Cycloid decelerator , Worm decelerator.
(3) Discharging valve: Flap valve , Spherical surface valve , State standard valve , Cylinder valve , Non-standard discharging valve.
(4) Control: Manual control , Pneumatic control , Electric control.
(5) Feeding inlet: Standard , Designed as requirement , Manual feeding inlet( with cover).
4. Seal:
Teflon , Mechanical , Air purge
5. Details
material: Mild steel ; Stainless steel (304,316,316L etc.).
total volume: 0.3-30CBM
batch working capacity: 0.1-20CBM
batch output: 0.3-15tons
mixing time: 3-15mins
driven-power: 3kw-160kw
6. Additional functions:
Outer jacket , Heating jacket , Tube temerature-control jacket , Temperature preservation layer , Batching type , Sprinkling device, Heavy duty type.
Customizing according to client's specific requirement.

---
