Waste Plastic PE PP/HDPE/LDPE/LLDPE/BOPP Film/Bag/Woven Bag/Non Woven/Fiber/Pipe Granulating Line/Agglomeration Recycling/Compact Pelletizing Machine

Product Description

Machine: PE Film Granulating Machine Pelletizing Machine

Product Description
The waste plastic recycling granulating machine / plastic pelletizing machine could recycle different kinds and shapes of waste platic, such as PE film agricultural film, industrial film, shopping bags, PP woven bags, jumbo bags, plastic pipe, injected parts, ABS, PET PC, etc. The machine will melt the waste plastic and produce plastic granules ( pellets) as final products. The recycled plastic granules (pellets) could be used as raw material to reproduce plastic film, bags, pipes, bottles, etc.
According to different kinds and shape of plastic, we have different model machines to recycle. Such as clean industrial waste plastic, we could use single stage granulating machine. For washed plastic and higher output, we could use double stange / double rank (mother-baby type) granulating machine. If the waste plastic is dirty, we shall clean them before granulating. We also could supply plastic crushing and washing machines.
For soft plastic, such as film, bags and foils, we could use compactor feeding design. For hard and rigid plastic, such as lump scraps, pipes scraps, bottle and drum flakes, etc, we could use force feeder.
Our plastic granulating machine has different output, range from 100kg/h to 1000kg/h.
Waste Plastic Film Sampe and plastic granules sample produced by our plastic granulating machines.


Product Parameters

Model	Screw diameter	Screw L/D	Main Motor power	Product capacity
SJ-85	85mm	28:1~33:1	55kw	150-200kg/hr
SJ-100	100mm	28:1~33:1	75-90kw	200-300kg/hr
SJ-130	130mm	28:1~33:1	90-110kw	300-400kg/hr
SJ-150	150mm	28:1~33:1	110-132kw	400-500kg/hr
SJ-160	160mm	28:1~33:1	132-160kw	500-600kg/hr
SJ-180	180mm	28:1~33:1	160-200kw	600-800kg/hr
SJ-200	200mm	28:1~33:1	200-250kw	800-1000kg/hr

Machine list for single stage PE PP Film Bags Granulating Machine

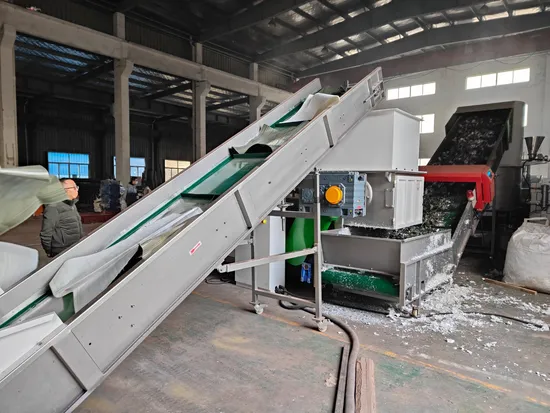

Belt conveyor with metal detector
Function: Feeding raw material into compactor. The feeding speed is adjustable. The metal detector could detect any metal and stop the belt conveyor and alarm, till take out the metal.
Compactor
Function: The baldes rotate in high speed and cut the film & bags, and melt them with the friction heat to be solid and feed into the barrel.
The internal layer for the compactor chamber is made of stainless steel. There is water cooling device. The chamber is opened by hydraulic syste, for easy operation. There is also travel swich on the chamber opening place for safety.
Single Screw Extruder
The screw and barrel is made of 38CRMOA1A, with nitriding process for anti-wear. There are heaters on the barrel to melt the plastic. The screw will mix and push the melted plastic go through the screen change and diehead to cut into granules shape.
The vacuum pumps are equipped to take out the moisture from the barrel. This will guarantee the final granules are solid and without air bubble.
Screen Changer and Water Ring Pelletizer
The non-stop screen changer will filtering dirty material from the plastic. It is driven by hydraulic pump to change screen.
The water ring pelletizer has vertical design and horizontal design. The main parts are made of stainless steel, cutting speed control is by inverter.
The plastic granules are produced from here.

Centrifuge Dewatering Machine
Made of stainless steel. Rotating speed 1500RPM. The rotor rotates in high speed, the water on the granules will be removed by the centrifuge force.
The plastic granules will go into the bottom of centrifuge dewatering machine and go out from top.
Vibration Sieve
Made of stainless stee. The function is to remove the bigger and smaller granules, only feed the required size granules into packing silo.
Blower and Cyclone Silo
The pipes and silo are made of stainless steel. The blower will send granules into the silo for packing into bags. The silo outlet height could be made according to requirement.
Control cabinet
To control the complete granulating line. Siemens contactor, Chinese famous brand swiches, ABB Delta inverter and Omron / RKC temperature controller.

Detailed Photos
Single Stage PE PP Film Bags Granulating Pelletizing Machine
Double Stage / Double Rank/ Mother-Baby Type PE PP Film Bags Granulating Line
Water Ring Pelletizing Type
Single Stage PE PP ABS Rigid Hard Plastic Scraps Granulating Machine
PE PP ABS Hard Plastic Rigid Plastic Scraps Double Rank Mother-Baby Type Granuatling Machine
Strand Pelletizing Type
Packaging & Shipping
If the waste plastic is dirty, we shall washing them before granulating. We also produce plastic washing lines for PE PP PET ABS waste plastic with high quality and good performance.

Plastic Shredders are available as well, both single shaft and twin shaft shredders.
Welcome to contact us to find suitable plastic recycling machines / granulating machines for you.
FAQ:1.Are you manufacturer or trading company?
We are manufacturer for plastic recycling machines, including plastic granulating machines, waste plastic crushing washing lines, plastic shredders, etc.
2.Why choose us?
We have more than 15 years experience for producing plastic recycling machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic you want ro recycle and the expected output per hour, we will prepare proposal for you.
You just tell me what machine you want,let us do the rest work: 1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.

---
