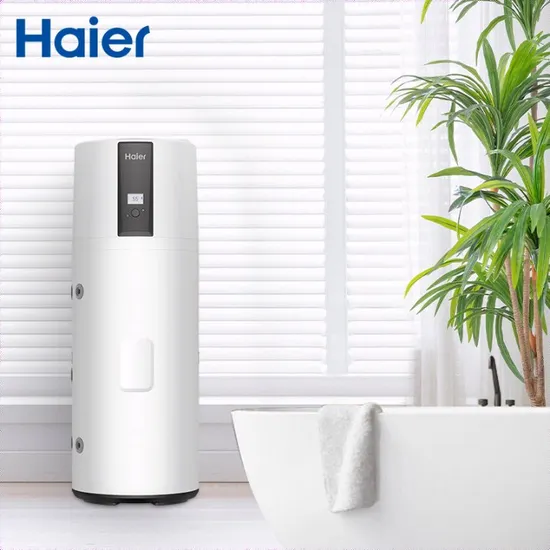

Smart A+ Erp High Cop Energy Saving Multi-Energy Connected Low Noise All In One Integrated Enamel Tank R290 DC Inverter Air Source Heat Pump Hot Water Heater

Product Description

Product Parameters

Model	HP200M7	HP200M7C	HP250M7	HP250M7C
Tank
Total cylinder capacity(L)	194	185	250	240
Tank Max pressure(kPa)	700
Rated voltage/frequency(V/Hz)	220-240V/50Hz
Corrosion protection	Magnesium rod
Insulation protection rating	IPX4
Performance
COP@7°C(EN16147)	3.2	3.2	3.23	3.21
COP@14°C	3.6
Power input by electric backup(W)	1500
Rated power input by heat pump(W)	320
Maximum power input by heat pump(W)	535
Maximum power input(W)	2035
Heating water capacity(L/h)	24
Heating up time(10°C/55°C)@7°C(h)	7	6.8	10.5	10.3
Default temperature setting(°C)	65
Temperature setting range with heater(°C)	35-75
Maximum temperature output for the heat pump only(°C)	65
Max working pressure of refrigerant(MPa)	1.0/3.3
Refrigerant type/weight(kg)	R290/0.15
Sound power level *@1 metre(dB(A))	50
V40(L)	239	228	307	295
Ambient temperature of heat pump(°C)	-7-45
Dmensions and connections
Water inlet and outlet connection	Rp 3/4
TPR valve connection	Rp 3/4
Drain & water inlet connection	Rp 3/4
Product dimensions(mm)	600*620*1694	600*620*1694	600*620*1989	600*620*1989
Packing dimension with pallet(mm)	736*695*1940	736*695*1940	736*695*2250	736*695*2250
Net/gross weight(kg)	86/109	96/119	98/121	107/131
Filled weight of the appliance(kg)	281	282	347	349
*THE COP was measured under test conditions with an ambient air temperature of 20°C/15°C (Dry Bulb/Wet Bulb) and heating of the water from 15°C to 55°C during water heater operation. *The noise level was measured at 1 m from the water heater during a Noise Test conducted to Standard GB/T 23137 in a hemi-anechoic chamber with in a laboratory.

ABOUT R290
EFFICIENCY
DURABLE
COMFORTABLE & CONVENIENT

Why Choose Us

FAQ
Q1. Who are we? A: Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc. Q2. How can we guarantee quality? A: Always a pre-production sample before mass production; Always final Inspection before shipment. Q3. What can you buy from us? A: Heat pump water heater, air source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pump Q4. Why should you buy from us not from other suppliers? A: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base Q5. What services can we provide? A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency: USD, EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian

---
