Improve Processing Efficiency and Quality 3D 5-Axis Automotive Thermal Forming Parts CNC Fiber Laser Cutting Machine with CE Easy Maintenance

Product Description

HGTECH 3D 5 AXIS LASER CUTTING SOLUTIONS

The 3D 5-Axis laser machine series is characterized by high precision, high speed, high efficiency, high stability, leading technology in the world, compact structure, simple operation and easy maintenance.
The products are widely used in automotive, mould, household appliances, engineering machinery, ships, hardware, medical equipment, fitness equipment and other fields to meet the requirements of various metal workpiece surface cutting and trimming.
Technical Advantages
The 3D 5-Axis laser machine series transmits the high-density and high-energy laser beam to the three-imensional processing head through the optical fiber.
The non-contact method is used to process the workpiece accurately and rapidly.
It is flexible and easy to operate, which can perfectly solve the requirements of hole cutting and trimming on the workpiece surface.


High cutting accuracy and efficiency, perfectly solving the problems of metal surface cutting and trimming;
Mastering core technology, high-performance 3D laser processing head, independently developed online modification software;
Convenient first commissioning and line change, digital analog which can be quickly imported and programmed through offline/online programming software;
Auxiliary functions such as welding, visual inspection and automatic loading and unloading which can be expanded.

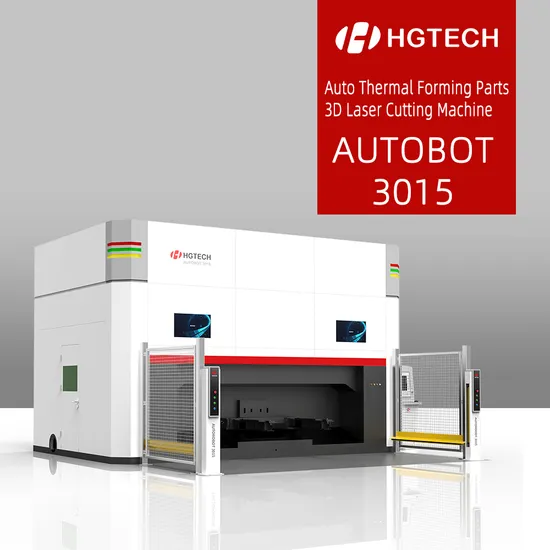

Auto Thermal Forming Parts 3D Laser Cutting Machine

AUTOBOT3015 3D 5-axis laser cutting machine is a laser processing equipment specially developed for the auto thermal forming industry. It mainly solves the problems of hole cutting and trimming of thermal formed parts. It is characterized by high precision, fast speed, good dynamic performance, low use cost, simple operation and maintenance, and is suitable for batch production.

High Efficiency
Equipped with high-speed rotary worktable and a new generation of independently developed high-performance cutting head, it can meet the production rhythm requirements of the automobile hot forming industry to the greatest extent.
Stability
The gantry double drive structure is adopted, which has good stability and can realize 24-hour continuous stable production.
Security
Equipped with a fully sealed laser protection room, the light curtain ensures the safety of personnel in the workbench area, and the overall safety protection of the machine tool complies with CE international safety standards.
Cost Efficiency
Compared with the production efficiency of imported equipment, lower equipment procurement cost, shorter delivery period, and lower maintenance cost.
Convenience
Large HMI interactive interface, convenient operation, rich information, including process database, graphic display, automatic fixture control, rapid program editing and modification and other functions.

Product Parameters

Equipment model	AUTOBOT3015
Stroke of Each Shaft	X-Axis	3000mm
	Y-Axis	1500mm
	Z-Axis	680mm
	A-Axis	±135°
	C-Axis	±n*360°
	U-Axis	±12.5mm
Technical Parameters of Rotary Table	Rotation diameter	4000mm
	Side max. load	400kg
	Min shifting time	≤2.5s
Accuracy	X/Y/Z Axis Position Accuracy	±0.03mm
	X/Y/Z Axis Repeat Position Accuracy	±0.02mm
	A/C Axis Position Accuracy	0.015°
	A/C Axis Repeat Position Accuracy	0.005°
Speed	X/Y /Z Axis Max Positioning Speed	100m/min
	A/C Axis Max Positioning Speed	720°/s
	X/Y/Z Axis Max Acceleration	1.0G
	A/C Axis Max Acceleration	5400°/S²
Power	Phase No.	3
	Rated Voltage	380V
	Frequency	50Hz
	Protection Level	IP54
Weight & Size	Net Weight	16000KG
	Space Size(Length×Width×Height)	7800mm(L)*7600mm(W)*3900mm(H)

Sample

Physical photo of cutting head
After Sales Service
Service process
Maintenance process

Packaging and shipping

Company Profile
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. (Stock code: 000988)
HG Farley Laserlab Cutting Welding System Engineering Co.,Ltd. (hereinafter referred to as "HG Farley") is a high-tech enterprise established in China with laser cutting, laser welding, plasma cutting and other high-end equipment as its main business after HGTECH acquired a well-known global cutting system company in Australia and also later than the listing of HGTECH in 2000.
As a core subsidiary of HGLaser, it has always focused on the technological development of the cutting and welding industry, to provide the world with leading and high-quality cutting, welding, cleaning machine as well as perfect industry solutions.
The supreme goal of HG Farley's technology and products is to improve users' market competitiveness, make users' work simpler, more efficient, and better economic benefits. This goal is applicable to our full range of products:

Laser Cutting
Laser Welding
Laser Cleaning
Automobile Equipment Sutomation
Sheet Metal Assembly Line
Digital Factory Solution

Since the world's first industrial high-power laser cutting machine was developed in 1977, it has focused on the industrial application of laser technology for decades. The first three laser cutting machines in the Chinese market are all from the Farley brand. The brand of HG Farley has a long history, with durable equipment and perfect service system, and continuing to create value for customers.
Cooperative Partner

FAQ

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!
