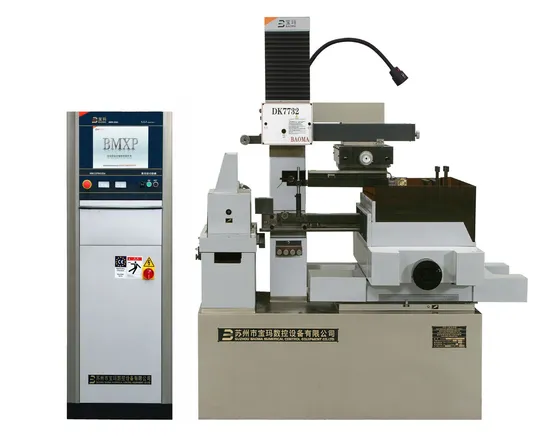

Wire EDM Machine Dk7732

Product Description

DK7725 wire cutting edm machine 1.High precision linear guideway
2.MITSUBISHI INVERTER JAPAN
3.Central lubrication system
4.BMXP Control system
5.AutoCAD can be used directly
6.Three layer filter coolant system
7.CE; ISO9001; ISO14001 Approved
7.Remote jog handle
8.Reusable molybdenum wire
9.multiplicity cutting function
10.Intelligent Database

BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time
(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.

CNC Wire Cut EDM		Unit	DK7732
Worktable size (L× W)		mm	415× 635
Table travel(X× Y)		mm	320×400
Max. machining speed		mm² /min	150
Precision	Octagon	mm	≤ 0.012
Max. working current		A	6
Roughness, three cutting		μ m	≤ 1.2
Wire diameter		mm	0.15~0.2
Wire travelling speed		m/min	5~11
Load of table		Kg	300
Working solution			working solution BM-2/BM-4 or Saponification Liquid
Working reservoir capacity		L	100
Power supply			Customized
Power consumption		KVA	3
Wire guide frame			Adjustable
Machine weight		Kg	1600
Controller type			BMW-3000

---
