Waterworks Double Offset Flange Butterfly Valve Awwa C504 for Industrial Application

Product Description

Product Description

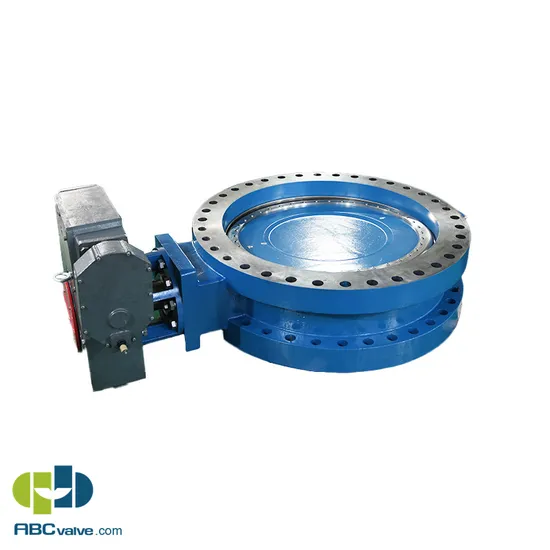

Series A65 AWWA High performance butterfly valve features a ductile iron flanged body, eccentric disc and self-sealing seat for pressure up to Class300 even for large size to 72". Besides pressure, self-sealing design make the valves have very low torque and high number of open-close up to 100,000 cycles for rubber seat.
A65 AWWA butterfly valves are designed according to AWWA C504 for applications throughout water and wastewater treatment plants, water distribution systems, power plants, and industrial plants. The valves can be applied in applications demanding high-quality and thoroughly tested valves which offer many years of trouble-free service even in the event of earthquakes. Product Parameters

Series	A65A
Connection	Double flanged
Nominal diameter	3" to 72" (DN80-DN1800)
Max.working pressure	Up to 750PSI (50bar Class300)
Standard working pressure	285PSI (20bar Class150), 750PSI (50bar Class300)
Design standard	AWWA C504
Face to face	AWWA C504
Top flange	ISO 5211
Tightness check	AWWA C504
Temperature range	-29°C to +200°C (Depending on pressure, medium and material)
Operation	Gear box,pneumatic actuator,electric actuator

Series	A65B
Connection	Double flanged
Nominal diameter	DN350-DN3000
Max.working pressure	40bar
Standard working pressure	PN10, PN16, PN25, PN40
Design standard	AWWA C504
Face to face	BS5155
Top flange	ISO5211
Tightness check	BS5155
Temperature range	-29°C to +200°C (Depending on pressure, medium and material)
Operation	Gear box, pneumatic actuator, electric actuator

CLASS150 SIZE		A	B	C	D	E	F	n	d	G	J	L	WT (kg)
DN	INCH
80	3"	145	100	17.5	190	11×11	70	4	10	/	19	127	30
100	4"	170	124	17.5	230	14×14	70	4	10	/	22.3	127	40
125	5"	185	144	17.5	255	14×14	70	4	10	/	22.3	127	45
150	6"	203	150	18.5	280	17×17	102	4	12	50	23.9	127	50
200	8"	239	186	24.5	345	22×22	102	4	12	70	27	152	85
250	10"	275	226	24.5	405	22×22	102	4	12	80	28.6	203	120
300	12"	307	251	30	485	27×27	125	4	14	120	30.2	203	160
350	14"	414	276	45	535	44.5	125	4	14	160	32.4	203	230
400	16"	520	396	76.2	595	50.8	165	4	22	190	35	203	290
450	18"	550	430	76.2	635	57.2	165	4	22	220	38.1	203	310
500	20"	550	444	95	700	63.5	165	4	22	250	43	203	390
600	24"	657	514	80	815	76.2	254	8	18	300	46.1	203	565
700	28"	720	525	80	925	76.2	254	8	18	330	54	305	810
750	30"	750	550	115	985	92.1	254	8	18	370	54	305	1100
800	32"	760	600	115	1060	92.1	298	8	22	400	60.3	305	1350
900	36"	900	702	150	1170	111	298	8	22	450	88.9	305	1500
1000	40"	1056	772	190	1290	127	406	8	38	500	889	305	2230
1050	42"	1120	850	190	1345	127	406	8	38	520	66.7	305	2450
1200	48"	1166	943	214	1510	143	406	8	38	600	69.9	381	2600
1400	56"	1376	1080	224	1745	171.5	406	8	38	700	122.3	381	3600
1600	64"	1440	1210	225	1930	184	406	8	38	800	102	457	4360
1800	72"	1550	1320	260	2195	216	483	12	38	900	88.9	457	5100
2100	84"	1700	1470	300	2535	216	603	20	38	900	98.4	610	5910
2400	96"	2150	1620	300	2875	216	603	20	38	950	108	711	6100

Company Profile
ABC Valve focuses on Automatic Butterfly valve Control. The manufacturing system and products are certified by ISO9001, BV Marine, CE, ATEX and TS. The cooperative team is knowledgeable in fluid control technology and make sure that ABC valves suppling to worldwide customers with high quality and competitive price.
With unique patent designs, special attention on user' s feedback, ABC valves are widely applied in lithium battery industry, food industry, pharmaceutical, textile dyeing, heating and cooling, municipal, shipbuilding, electronics, nuclear power, petrochemical, paper-making, environmental protection etc.
Mission of ABC Valve-- Make fluid control easier.
Main Products
ABC Team with Clients
Certifications
Packaging & Shipping
FAQ
1) Q: Are you a manufacturer or trading company?
A: ABC Valve is a professional valve manufacturer with experienced R&D team.
2) Q: Do you have any agent or representative abroad?
A: Yes, we have agents in some countries, they can offer local service for you.
3) Q: What kinds of valve can you supply?
A: We can supply butterfly valve, ball valve, check valve and so on.
4) Q: Do you have any certificate for the valves?
A: Yes, we have CE, BV, ATEX, TS and so on.
5) Q: What's the delivery time?
A: If all the parts of the valve are ready in stock, the valves can be delivered within 7~10 days. 6) Q: What are the countries or regions you supply valves?
A: ABC valves have been supplied to USA, Europe, Australia, Singapore, South Africa and so on.

---
