Product Description
Product Description

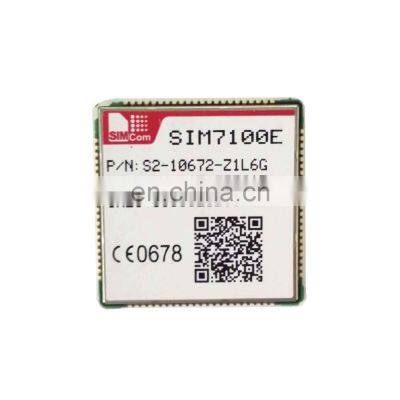

DescriptionSIMCom 4G Module, SIM7100E• SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on Qualcomm MDM9215 multiple-mode LTE platform. • SIM7100A is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:Cortex™ A5(550MHz), three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.General features• Five-Band FDD-LTE B1/B3/B7/B8/B20• Dual-Band TDD-LTE B38/B40• Dual-Band UMTS/HSDPA/HSPA+ B1/B8• Dual-Band GSM/GPRS/EDGE 900/1800 MHz• Control Via AT Commands• Supply voltage range: 3.4V~ 4.2V• Operation temperature: -40℃ to +85℃• Dimension: 30 X 30X 2.9 mm• Weight: 5.8g• GNSS: gpsOne Gen 8B;standalone;assisted,XTRA;Specifications for Data transfer• LTE- Uplink up to 50Mbps,- Downlink up to 100Mbps• HSPA+- Uplink up to 5.76 Mbps,- Downlink up to 42 Mbps• UMTS- Uplink/Downlink up to 384Kbps• EDGE Class:- Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)• GPRS- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)• CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6Kbps- WCDMA 64kbps CSD for Video callOther features• USB Driver for Microsoft Windows2000/XP/Vista/7/8• USB Driver for Windows CE/Mobile• USB Driver for Linux /Android• RIL supporting for Android/Windows CE/Mobile• Automatic installation for windows• Linux API SDK• Firmware update via USB• TCP/IP/IPV4/V6 Multi-PDP,MT PDP• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS• DTMF• Gobi SDK to the Win7/Win8/Linux• MBIM to Win8• Source code of the PC manager of the device for referenceInterfaces• USB2.0• UART• SIM card• SPI• I2C• Keypad(5*5)• Constant current sink• GPIO• ADC• PCM *• SDIOCertifications• CE• ROHS ( ongoing )• REACH ( ongoing )• GCF ( in planning )Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
