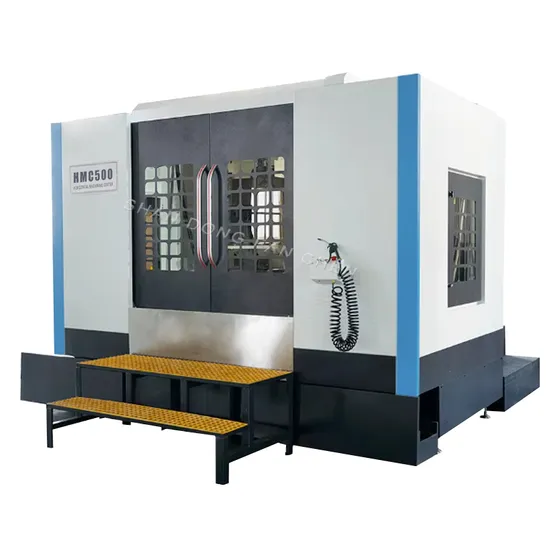

Hmc500 CNC Milling Machine Horizontal Machining Center

US$80,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HMC500
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
X-Aixs Travel
800mm
Y-Aixs Travel
650mm
Z-Aixs Travel
650mm
Workbench Size
500X500mm
Distance From Spindle Rotation Center to
0-650mm
Spindle End Face to Workbench Rotation C
200-850mm
Spindle Taper
Bt40-150
Spindle Speed
6000rpm
Spindle Motor
11/15kw
Maximum Load of Workbench
1000kg
Tool Magazine
24 PCS
Controller System
Siemens
Machine Weight
9700
Transport Package
Wood
Specification
3700x3200x3500mm
Trademark
FANCHEN
Origin
China
Production Capacity
30sets/Month

Packaging & Delivery

Package Size
370.00cm * 320.00cm * 350.00cm
Package Gross Weight
9700.000kg

Product Description

Project
 Secondary module Unit Parameter
Working range X-aixs travel Mm 800
Y-aixs travel Mm 650
Y-aixs travel Mm 650
Distance from spindle rotation center to table surface Mm 0-650
Spindle end face to workbench rotation center Mm 200-850
Principal axis Spindle speed Rpm 6000
spindle taper BT40
Spindle Motor Kw 11/15
Workbench Workbench size Mm 500×500
maximum rotating diameter Mm 950
Maximum load of workbench kg 1000KG
Tool magazine Knife handle form disc type
tool magazine 24
Maximum tool diameter (without critical tool) Mm 125(230)
Maximum tool length Mm 350
Maximum tool weight Kg 25
Speed X-axis rapid displacement m/min 24
Y-axis rapid displacement m/min 18
Z-axis rapid displacement m/min 24
cutting feed rate mm/min 10-10000
Working accuracy XYZ three-axis positioning accuracy 300mm 0.01
XYZ three axis repeated positioning accuracy 300mm 0.005
Turntable positioning accuracy ±5″
Repeated positioning accuracy of turntable ±3″
Controller system
 Siemens
Other parameters machine weight kg 9700(±5%)
power requirement KVA 35
Air pressure source kg/cm2 6

This product can be customized according to the customer needs.
Optional
Spindle (Domestic / imported brands are optional) Electric spindle 18000-24000 turn with turning function
Tool magazine Disk 24 tool magazine
Rotating platform (Domestic / imported brands are optional) The fourth axis of the platform
Cradle turn
Cradle with turning function transfer table
Controller system Siemens 840
Fanuc
Mitsubishi
Syntech
China KND Digital
/GSK( China Guangzhou Digital)
/H N C( Central China Central China)

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
